    1/2’-1''-1-1/2'' PVC Pipe Production Line With HYZS55/120 Conic Twin Screw Extruder

    1/2’-1''-1-1/2'' ​PVC pipe Production Line With HYZS55/120 Conic Twin Screw extruder



    A .Speciality of HYPET PVC 1/2’-1''-1-1/2'' Pipe Extrusion Line


    SNItemsspecification
    1HYZS55/120 high efficient Conic Screw Extruder

    1, New designed by our experience which output can be high level

    2, Gear box is with high torque by strong gear and frame case with long life

    3, heaters with heat protection which can make the energy saving

    4, Barrel and screw are bimetal type for longer working life

    2High speed Die head

    1, all parts are made by CNC machine tool to ensure the flowing equal well ,

    2, with shining device,

    3, high output speed can be 1-10m/min

    3Vacuum Tank

    1, ALL are made by 304 Stainless steel material without painting.

    2, water level and vacuum are controlled automatically

    3, Install vacuum pressure relief muffler to realize that the sound of the

    4Haul off

    1, 2 Claw type o ensure stable haul off force.

    2, Driven by AC motor and inverter controlled by PLC system

    3, Haul off Gear box are strong with harden gear surface.

    5Cutter

    1, high speed Dustless cutter device,

    2, with special motor action to ensure the pipe speed when cutting.

    6HYPET other special offerings

    1, Offering On-Line Technical Service for free, Offering Technical Engineers service for big project or solving key technical items,

    2, Offering matched good down stream equipment for plastic pipe profile, sheet /board pellets Etc.


    B. Production line construction

    SNDescriptionQty (set)
    1HYZS55/120 Conic Twin Screw extruder 30kw motor power1
    2Auto loader1
    3Double die head1
    4Double vacuum tank1
    5Double Haul off unit1
    6Double up and down cutter1
    7Stacker1

    Remarks:

    1. Condition of the price Ex-works Wuhan China

    2. Payment mode: 30% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T. or L/C at sight

    3. Delivery period: 60 days after order confirmed.

    4. Validity period: 30 days after issured

    5. Warranty: one year after commissioning in the customer shop

    6. Training: both in china and in the customer shop are Available

    7. If necessary, The supply can send the engineers to the buyer for commission under the condition, but the buyer will pay the two ways flight hotel and meal, and the salary of 80 USD/day/one person.


    C. Specification of the Machine

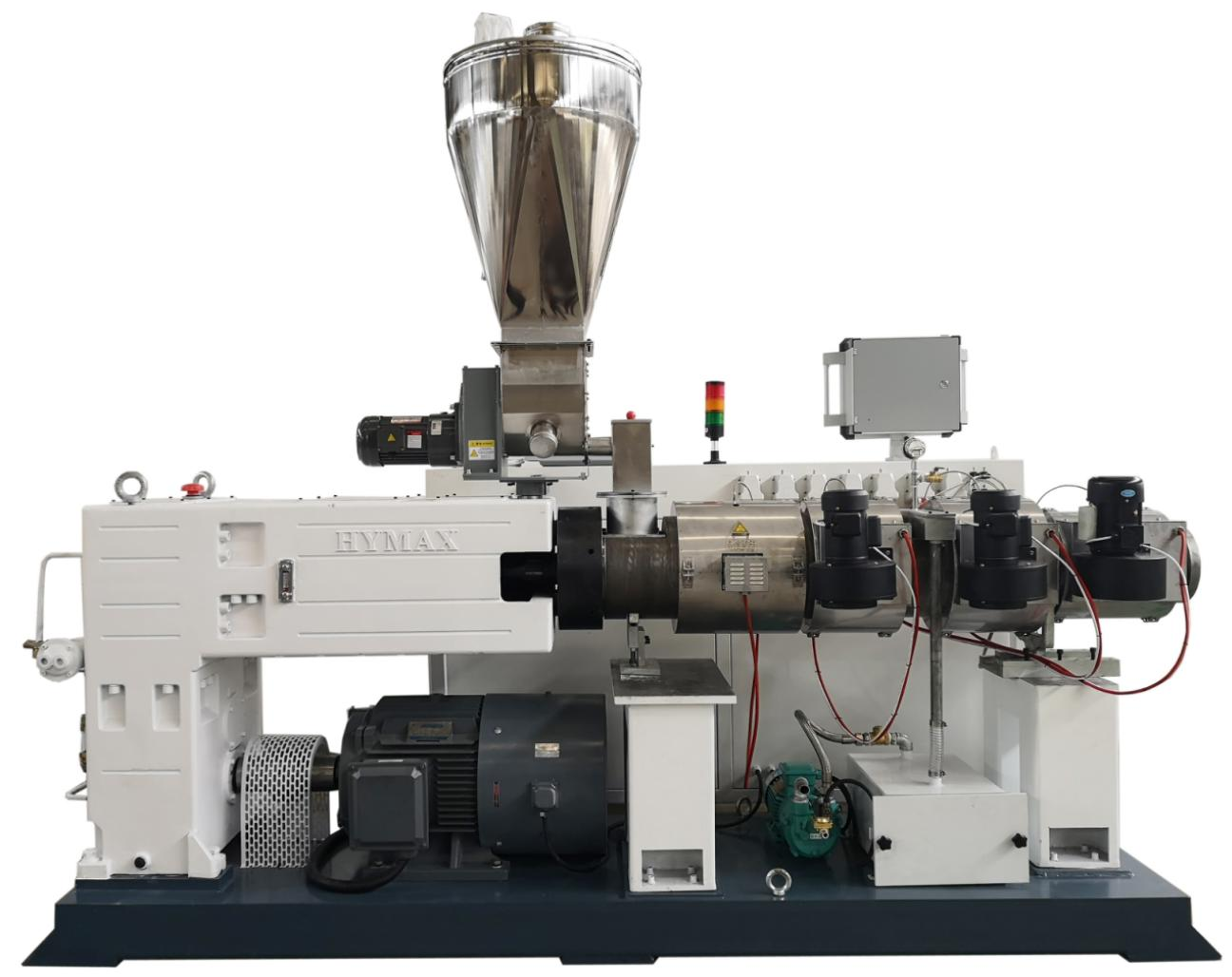

    1. HYZS-55/120 high output twin screw extruder 1 set



    SNParts nameSpecificationDescription
    1ExtruderExtruder modelHYZS-55/120 conic twin screw
    Output180-220kg/h for pipe
    Center height1000mm
    Dimension2710 x 1250 x 2600mm
    Weight2300kg
    2ScrewDiameterØ55/120 mm
    Material38CrMoAlA + special alloy
    FinishNitrogen-filled (0.50~0.70mm depth) and polish
    Rotate speed0~38 r/min
    Core of the screw

    Auto control for temperature

    (Oil cooling will be for option )

    3BarrelBarrel StructureIn two parts, front part will be with special alloy inserted.
    Big Part of the barrel38CrMoAlA
    Fron part of the barrelSKD11 with heat treatment
    Inside finishNitrogen-filled (0.50~0.70mm depth)
    4Temp/ pressure transducerQualityChina famous brand
    StructureSeparately senses both in pressure and temperature
    CableHigh isolated cable line
    ScreenBoth in monitor or screen display
    5Heater and cooling fansHeating control area4 zones
    Heating wayCast aluminum/ ceramics
    Heating power16kW
    Cooling systemLow-noisy barrel cooling fan
    Cooling power0.2kw x 3 sets
    Water/oil coolingOne zone in front part for option
    Heat isolatingSpecial isolating material and structure for energy saving.
    6HYPET Gear boxHousing materialDuctile iron
    Gear material20CrMnTiA
    Gear surfaceHardened and ground in high precision
    Axis material40Cr
    Temperature of oilControlled by two system,
    Rubber sealerImported specal rubber sealer used
    BearingsWih famous and reliable brand.
    7

    Twin screw Dosing

    feeder

    Supplying material motor1.5 kW
    Speed range1-50 RPM
    Powder bridgeAnti powder bridge with high Caco3
    InverterDelta heavy loader type
    8Vacuum degas with selectorVacuum degree-0.04Mpa
    Motor power1.5 kw
    Vacuum tankEasy to be clean

    Auto clean device


    Air control auto Clean device for option.
    9Driving motorAC motor power30 kW in Siemens brand
    AC inverter controllerDelta in heavy type

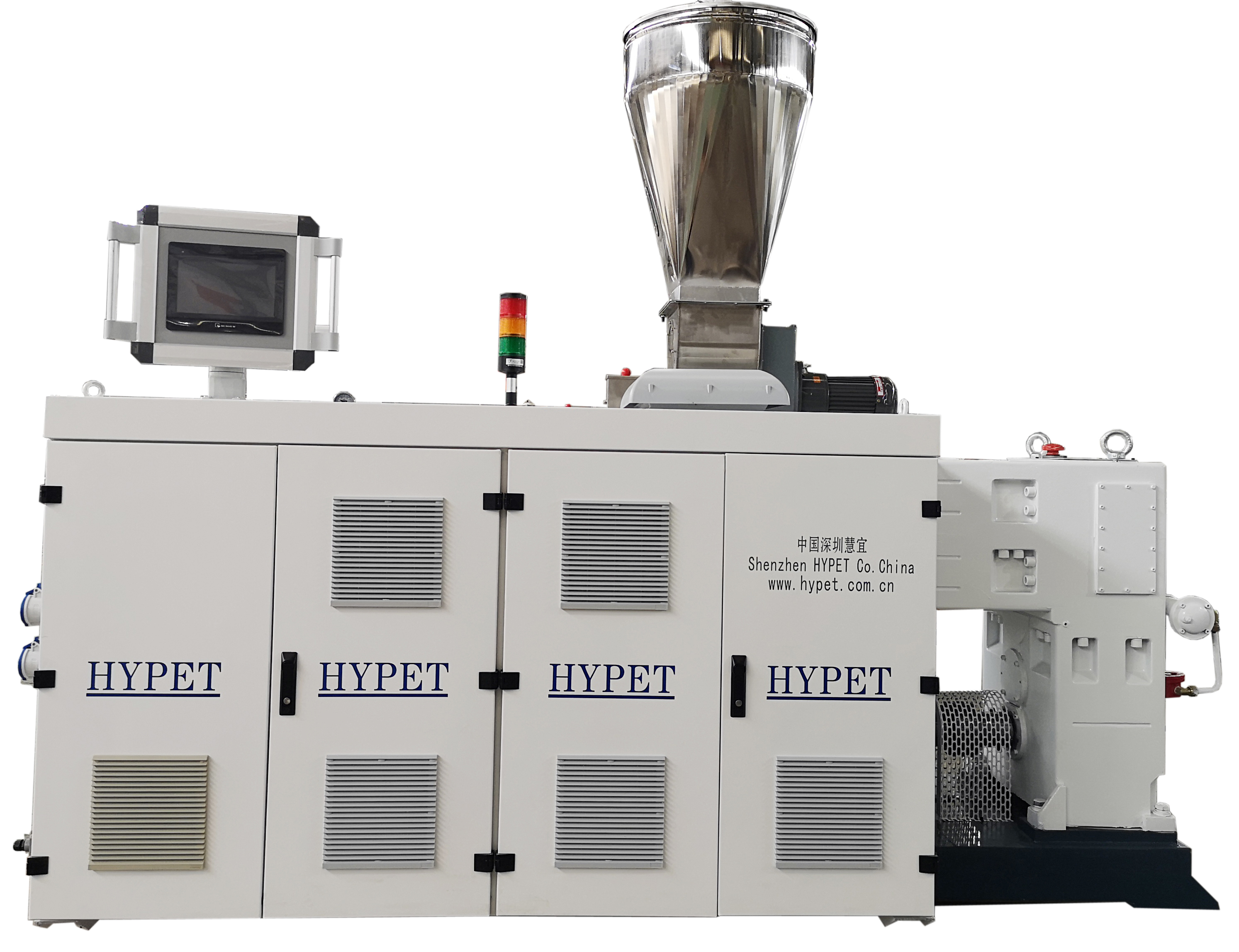

    10Electrical Control systemPLC systemWhole Siemens PLC control system with HYPET soft ware.
    Electric componentsBranded in Siemens,Schneider,RKC Omron,ABB,FUJI,and small unimportant parts in China famous brand
    Extra temperature zone for die head7 zones
    Electric cabinet feature

    1, all cable and connectors are with Wire aviation plug

    2, electric cabinet can be disassembled with easy,

    3, all cables and senses cables are strong enough with long life .

    4, PLC monitor control system with button adjustment for controlling screw speed with easy .

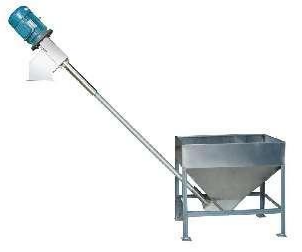

    2. Auto loader for extruder 1 set



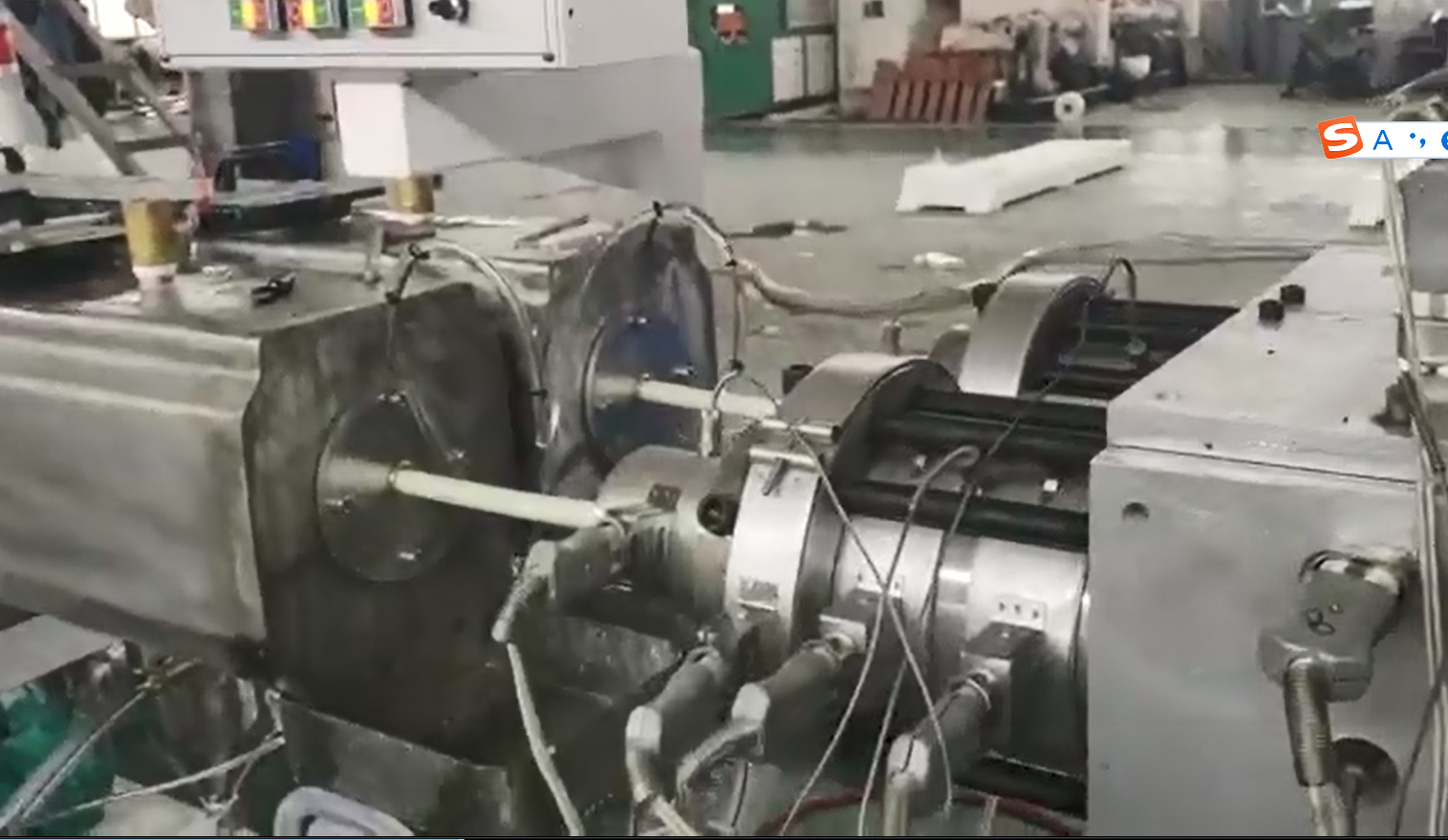

    3. Die head 1Set


    SNSpecificationDescription
    1Size for pipe1/2”~1-1/2” in different pressure
    Pipe thickness ( pressure class)

    1/2” offered by customer

    1” offered by customer

    1 1/2” offered by customer

    2Material of die headSpecial alloy
    3Speed typeHigh Speed type, up to 6-10m/min
    4Melt pressure/TempEquipped with Melt press/Temp
    5Heating zones8 zones
    6Flow surfaceAll flow surface polish and chrome
    7Material of calibrating sleevesStainless steel and harden shining polish and with water jacket

    4. Vacuum Calibrating tank in 6 m stainless steel 304 without painting 1 set



    SNSpecificationDescription
    1Size for pipe1/2”~1-1/2” in different pressure
    Pipe thickness ( pressure class)

    1/2” offered by customer

    1” offered by customer

    1 1/2” offered by customer

    2Material of die headSpecial alloy
    3Speed typeHigh Speed type, up to 6-10m/min
    4Melt pressure/TempEquipped with Melt press/Temp
    5Heating zones8 zones
    6Flow surfaceAll flow surface polish and chrome
    7Material of calibrating sleevesStainless steel and harden shining polish and with water jacket

    5.Haul off unit in double station 1 set


    SNSpecificationDescription
    1Driving methodDriven by special rubber block
    2Haul off sizes1/2”~1-1/2”
    3Motor power0.75kW x 4 sets
    4Max. driving power8,000 N
    5Driving speed1.5~15 m/min
    6Caterpillar width32mm
    7Effective length of caterpillar1,400mm x 4 sets
    8Upper caterpillar adjustmentBy cylinder
    9No. of cylinder1 cylinders in each chain
    10Down caterpillarFixed
    11Gear box typeStrong helical harden gear box
    12Motor typeAC motor with ABB controller

    6. Up and down cutter in double station 1 set


    SNSpecificationDescription
    1Cutting typeDustless cutter with chamfering
    2Blade styleBit + circular blade
    3Control systemPLC automatic control system
    4Cutting range1/2”~1-1/2”
    5Max. cutting thickness5 mm
    6Cutter speed15m/min
    7Center height1000mm
    8Cutter motor power0.75 kW x 2 set
    9Cutter numbers2 pieces
    10Cutter materialTool alloy
    11Clamping wayAluminum Alloy chuck
    12Cutter feedingCylinder feed
    13Synchronous modeCylinder with pipe movement

    7. Stacker 1 set



    SNSpecificationDescription
    1Tilting tablePneumatically operated double station
    2Nominal length4.5 mtrs
    3Material of tripping chuteMS rigid structural steel
