16-50mm PVC corrugated hose / pipe line

A. HYPET Special features

1. This line is designed to produce single wall conrrugated pipe which material is PVC, PP, PE and PA etc.

2. Single screw extruder is featured with high efficient compounding, low rate of shear, difficulty to decompose material, high output, good self-cleaning function and long service life.

3. It is more suitable for powder material.

4. The extruder has a vacuum degassing, a screw inside oil cooling, wind cooling or oil cooling of barrels.

5. Hypet special designed screw,special structured screw and special structure mould can protect screw and barrel from easy-abrasion and give an easy forming process.

6. The horizon style forming machine's work table can be adjusted in direction of transverse, vertical and horizontal. Forming blocks are made of special high quality alloy steel, and has many advantages like high strength, good abrasive resistance, low coefficient of thermal expansion.

7. As the wind cooling and water cooling mode, the forming machine is good for fast forming and good cooling effect.

8. This kind of pipe is widely used in protect pipe of car and train,supply and drainage pipe for washer, irrigation of farm and so on.

B. Commercial items:

C. Main specification

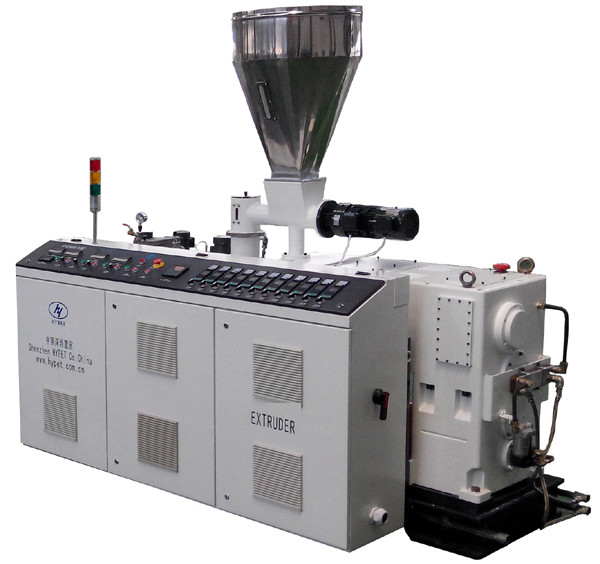

1. 1. Conic twin screw extruder HYZS51/110

2. Spring loader

	Image	Specification	Description
1		Pipe diameter	114mm
2		Output capacity	3 M3/h
3		Hopper volume	200L
4		Motor power	1.5 kw

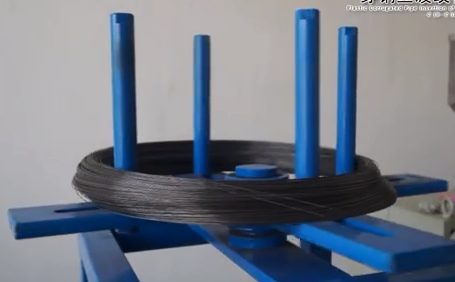

3. Metal wire rewinder

SN	Image	Specification	Description
1		Material	40Cr
		Function	Unfold the metal wire
		Diameter	Ø200~400mm

4. Die head

Product Image	Specification	Description
	Size	16-50mm with cores&steel wire channel, according to sample or drawing
	Material	High quality mold steel
	Number of die head	1 set
	Number of mold	1 set 20/25mm
	Calibrating mold size	55mmx80mmx65.94mm
	Calibrating mold material	40Cr
	Total length of mold	65.94mm × 60 pair = 3956.4mm

5. Vacuum forming machine

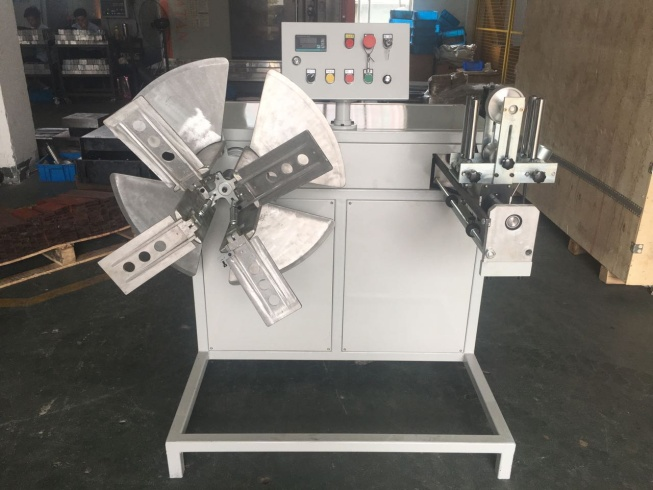

6. Coiler

Product Image	Specification	Description
	Pipe range	Φ16-Φ50mm
	Weight	350kg
	Working speed	0-25m/min
	Main DC motor power	0.75kW
	Contactor and relays	Schneider
	Inverter	ABB

Cooperative Brands:

Exhibition:

       Located in Shenzhen City which is the most lively and youngest top city in China, it's next to HongKong and Guangzhou City.

       Shenzhen HYPET founded in 2002, and it inherits from China national extrusion machinery entrerprise. Base on Germany and Italian technology, HYPET invented and manufacture unique gear box with own patent. For these reason to keep HYPET tech and machine quality priority in extrusion machine field.

      The first block type DIY plastic extruder solves the machine agents' many problem. They can easily get extruder parts from HYPET factory then assembles them in their own workshop via the installation video.

      The plastic extrusion line core part is the extruder. If the extruder is good, then the line 70% is good. So HYPET offer the service to match local downstream or old downstream service.

       Shenzhen HYPET machine is focus on top quality but best enconomic price. Our main plastic extrusion machine includes but not limited PVC / HDPE / PPR pipes extrusion production line, PVC and WPC all type of profiles (PVC window, ceiling, wallpanel, decking, gutter, duct...) production line, PVC plastic marble sheet line, SPC floor production line, WPC door plant, PVC foam board line, Nonweave melt blown fabric line.....

       HYPET also offer the special PVC processing aid to decrease your final product cost and increase the product quaity & better shining surface.

      We have a full technical team can help you design, manufacture, assemble, inspect and test the plastic machine meet your request.
