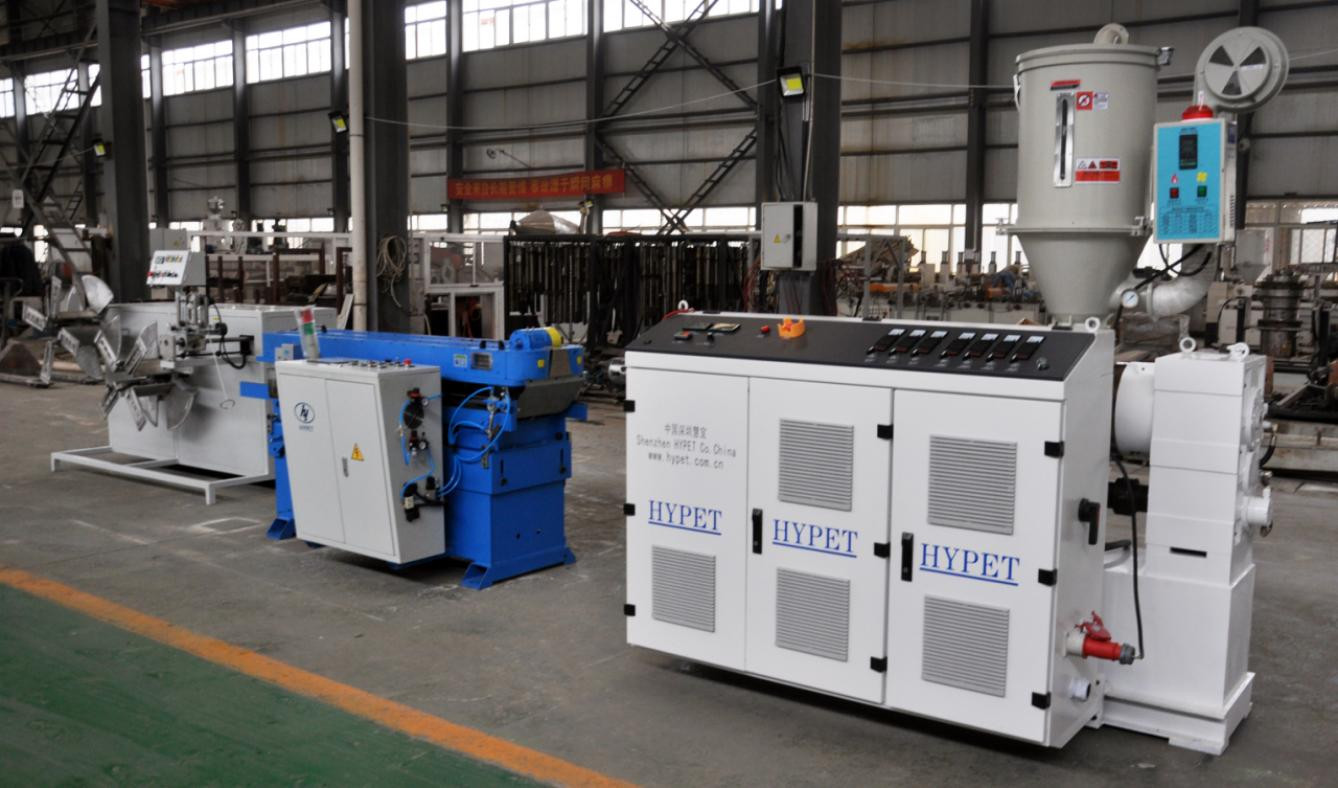

16-50mm PE / PVC corrugated hose line
A. HYPET Special features
1. This line is designed to produce single wall conrrugated pipe
which material is PVC, PP, PE and PA etc.
2. Single screw extruder is featured with high efficient
compounding, low rate of shear, difficulty to decompose material,
high output, good self-cleaning function and long service life.
3. It is more suitable for powder material.
4. The extruder has a vacuum degassing, a screw inside oil cooling,
wind cooling or oil cooling of barrels.
5. Hypet special designed screw,special structured screw and
special structure mould can protect screw and barrel from
easy-abrasion and give an easy forming process.
6. The horizon style forming machine's work table can be adjusted
in direction of transverse, vertical and horizontal. Forming blocks
are made of special high quality alloy steel, and has many
advantages like high strength, good abrasive resistance, low
coefficient of thermal expansion.
7. As the wind cooling and water cooling mode, the forming machine
is good for fast forming and good cooling effect.
8. This kind of pipe is widely used in protect pipe of car and
train,supply and drainage pipe for washer, irrigation of farm and
so on.
| SN | Item | Quantity |
| 1 | Hose diameter | 16mm-50mm |
| 2 | Raw material | PE pellet / PVC pellet |
| 3 | Output | 60-80kg/h |
| 4 | Total Installed Power | 60 kw, 380V/50Hz, 3 phase |
| 5 | Overall dimension | 5800x1200x1900mm |
| 6 | Cooling water capacity | 60L |
| 7 | Compressed air | 0.4Mpa- 0.6Mpa, 0.2m3/min |
B. Commercial items:
| SN | Item | Quantity |
| 16-50mm PE / PVC corrugated hose line including | 1 |
| 1 | Single screw extruder HYSJ65/28 | 1 |
| 2 | Auto loader AL300 | 1 |
| 3 | Hot dryer HD100 | 1 |
| 4 | Metal wire rewinder | |
| 5 | Die head | 1 |
| 6 | Vacuum forming machine | 1 |
| 7 | Coiler | 1 |
C. Main specification
1. Single screw extruder HYSJ-65/28
| SN | Part name | Specification | Description |
| 1 | Extruder | Extruder model | HYSJ-65/28 single screw |
| Output | 80 kg/h for PVC |
| Center height | 1000mm |
| Dimension | 2600 x 1200 x 2150mm |
| Weight | 1700kg |
| 2 | Screw | Diameter | Ø65 mm |
| Screw ID ratio | 28:1 |
| Screw speed | 50 rpm |
| Material | 38CrMoAlA + special alloy |
| Finish | Nitrogen-filled (0.50~0.70mm depth) and polish |
| Core of the screw | Auto control for temperature |
| Extra pc | Yes, for different raw material processing |
| 3 | Barrel | Material | Bimetal barrel |
| Inside finish | Nitrogen-filled (0.50~0.70mm depth) |
| Heating control area | 4 areas |
| Heating way | Cast aluminum heater |
| Heating power | 3.5 kw x 4 sets |
| Cooling system | Low-noisy barrel cooling fan |
| Cooling power | 0.2kw x 4 sets |
| 4 | Gear box | Housing material | Ductile iron QT-500 |
| Gear material | 20CrMnTi |
| Gear surface | Hardened and ground in high precision |
| Axis material | 40Cr |
| 5 | Driving motor | AC motor power | 22 kw AC motor |
| AC inverter controller | Delta inverter in heavy type |
| 6 | Electrical Control system | PLC system | Whole Siemens PLC control system with HYPET soft ware. |
| Control option: | RKC and traditional control can be offered |
| Electric components | Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small
unimportant parts in China famous brand |
| Extra temperature zone for die head | designed according to actual heating zone |
2. Auto laoder
| Product Image | Specifications | Parameter |
 | Model | AL300 |
| Working form | Inductive type |
| Power | 0.75kw, 3P |
| Capacity | 350kg |
| volume | 3L |
| Feeding hose diameter | Ф38mm |
| Feeding time | 8-10 seconds |
| Body Dimension | 370×385×700mm |
| Hopper dimension | 230×210×429mm |
| Weight | 51 kgs |
3. Hot dryer
| Product Image | Specifications | Parameter |
 | Model number | HD100 |
| Capacity | 100 kg |
| Heating | 6 kw |
| Blower | 180W |
| Power | 380V 3P 50HZ |
| Dimension | 1336 x 997 x 660 mm |
| Base size | 181 x 178 x Φ81 mm |
| Net weight(Kg) | 69 kg |
4. Metal wire rewinder
| SN | Image | Specification | Description |
| 1 |  | Material | 40Cr |
| Function | Unfold the metal wire |
| Diameter | Ø200~400mm |
5. Die head
| Product Image | Specification | Description |
 | Size | 16-50mm with cores&steel wire channel, according to sample or
drawing |
| Material | High quality mold steel |
| Number of die head | 1 set |
| Number of mold | 1 set 20/25mm |
| Calibrating mold size | 55mmx80mmx65.94mm |
| Calibrating mold material | 40Cr |
| Total length of mold | 65.94mm × 60 pair = 3956.4mm |
6. Vacuum forming machine
| Product Image | Specification | Description |

| Pipe range | Φ16~Φ50mm |
| Structure | Closed horizontal design |
| Running speed | 0-25/min |
| Main DC motor power | 3kW |
| Lubrication motor power | 0.06kW |
| Cooling type | Closed water cooling |
| Tempreture of cooling water | 5~15℃ |
| Inverter | ABB |
| Contactor and relay | Schneider |
| Control system | PLC control program |
| Touch screen | Willow |
| Operator station display | All parameter settings and controls are operated on the console
electrical and touch screen |
| Mold running rails | Material of rail | 38CrMoAlA,nitrated |
| Cooling type | Water cooling |
| Note: Adequate flow of cooling water supply to ensure that the
maximum speed of operation, the temperature of the bellows from the
forming device is not higher than 55 degrees. |
7. Coiler
| Product Image | Specification | Description |
 | Pipe range | Φ16-Φ50mm |
| Weight | 350kg |
| Working speed | 0-25m/min |
| Main DC motor power | 0.75kW |
| Contactor and relays | Schneider |
| Inverter | ABB |
