    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

    Ask Lasest Price
    Brand Name : Hypet
    Model Number : 800/2500 hot cold mixer
    Certification : ISO9001,CE
    Price : USD 34700/set
    Payment Terms : L/C, T/T
    Supply Ability : 50set/month
    Delivery Time : 35~45days
    • Product Details
    • Company Profile

    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

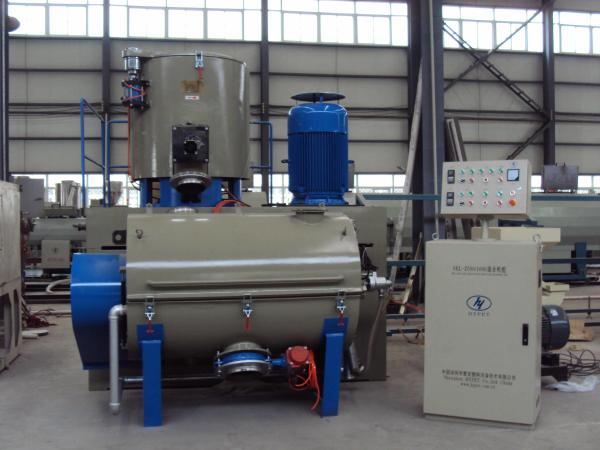

    1.800/2500 hot cold mixer
    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

    Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding



    2.Speciality of HYPET 800/2500 hot cold mixer

    SNSpeciality
    1For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
    2Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
    3The lid to take double-sealed, open the lid using pneumatic mode;
    4Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
    5It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer



    3.Commercial items

    SNItemQuantityUnit Price/USD Total Price/USD
    1800/2500 hot cold mixer13470034700
    Total in EXW34000
    For option
    1Raw material vacuum auto loader system for all mixer Including raw material station, and vacuum auto loader device185008500
    2Auto-loader in screw type 6 m long1780780
    3Material silo in 2.5 tons124002400
    4Vacuum auto feeder to the extruder178007800


    4.Main Specification of the Machine

    SNTypeSpecificationDescription
    1Model800/2500
    2StructureHorizontal
    3Hot mixing tankGeneral capacity800L
    Effective capacity600L
    Feeding cappacity260kg/batch
    Output1100-1300 kg/h (Depend on formulation)
    Motor Power110kw
    Mixing time10-12 min/batch
    Wall thickness8-12mm
    4Cold mixing tankGeneral capacity2500L
    Effective capacity1600L
    Motor Power30kw
    mixer structureHorizontal
    cooling wayWater cooling
    cooling time8-10min
    wall thickness8-12mm
    5Packing informationwith inverter DeltaYes
    weight kg6500 kg
    Dimension4340 x 2925 x 3382 mm
