SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Shenzhen HYPET Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets from wholesalers

    Buy cheap SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets from wholesalers
    • Buy cheap SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets from wholesalers

    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

    Ask Lasest Price
    Brand Name : Hypet
    Model Number : 300/600 hot cold mixer
    Certification : ISO9001,CE
    Price : USD 15700/set
    Payment Terms : L/C, T/T
    Supply Ability : 50set/month
    Delivery Time : 35~45days
    • Product Details
    • Company Profile

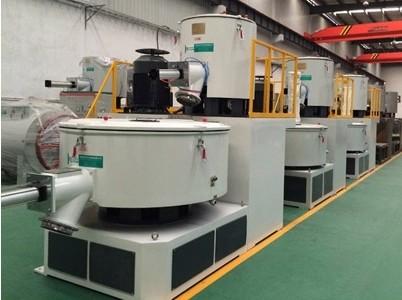

    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

    1.300/600 hot cold mixer
    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets


    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets
    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets



    2.Speciality of HYPET 300/600 hot cold mixer

    SNSpeciality
    1For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
    2Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
    3The lid to take double-sealed, open the lid using pneumatic mode;
    4Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
    5It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer



    3.Commercial items

    SNItemQuantity
    1300/600 hot cold mixer1
    2Inverter in Delta brand in 55kw for option1
    3Auto-loader in screw type 6 m long for option1


    4.Main Specification of the Machine

    SNTypeSpecificationDescription
    1Model300/600
    2StructureVertical
    3Hot mixing tankGeneral capacity300L
    Effective capacity225L
    Feeding cappacity110kg/batch
    Output500-600 kg/h (Depend on formulation)
    Motor Power55kw
    Mixing time10-12 min/batch
    Wall thickness8-10mm
    4Cold mixing tankGeneral capacity600L
    Effective capacity390L
    Motor Power11kw
    mixer structureVertical
    cooling wayWater cooling
    cooling time8min
    wall thickness8-10mm
    5Packing informationwith inverter DeltaNo
    weight kg3500 kg
    Dimension4800 x 2200 x 2554mm



    5.Cooperative Brands:
    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets


    6.Exhibition:
    SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets
