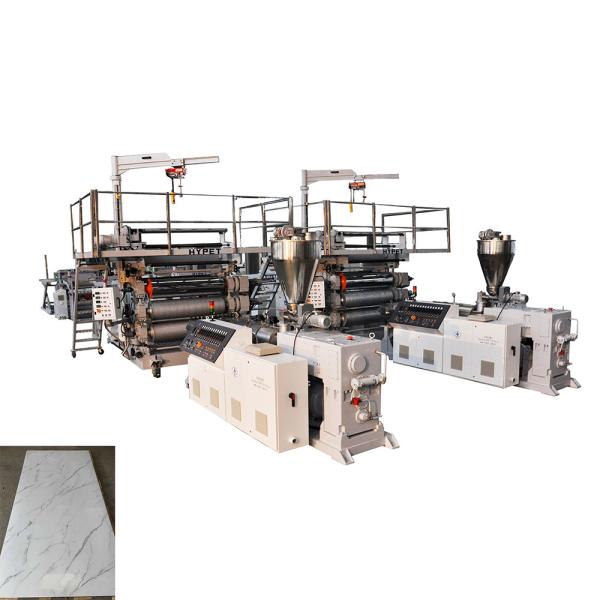

Plastic Board Extrusion Machine For Pvc 1220 Marble Sheet
Production
Plastic Board Extrusion Machine HYPET Unique Advantages
a. Equipped with HYPET special function extruder, high output, 12
tons/day,
b. Three-roller design, precise roller temperature control,
suitable for product cooling and forming
c. Optional hot stamping, laminating, transfer printing, slitting
and other functions.
d. The T-shaped die has multiple heating zones, which makes the
plasticization and flow rate more controllable.
e. Siemens PLC control system, equipped with HYPET self-developed
software, improves operation efficiency and reduces production
costs
Plastic Board Extrusion Machine Configuration list
Note: This table as attached file which is for selection of the
configuration on the whole line
| SN | Items | Description |
| 1 | Production control system | PLC control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling. |
| 3 | Main motor | AC motor with famous inverter |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts |
| 7 | Quantitative feeding system’s mixing function | High calcium special dosing device in twin screw type. |
Plastic Board Extrusion Machine Condition of use
1. Plastic Board Extrusion Machine Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC mixed powder | Calcium powder ratio max 300 |
| 2 | Suitable product | PVC marble sheet | |
| 3 | Max. output | 500-600 kg/h | |
| 4 | Max production speed | 0.5-3 m/min | |
| 5 | Test and accept | Based on HYPET standard formula | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 17,000 x 1,600 x 3,250mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing
material and working conditions |
2. Plastic Board Extrusion Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 | Natural circumstance condition | Working place | Indoor use |
| Power source | No dangerous area |
| Humidity | 55%~85% no condensation |
| Temperature | 0~40 ℃ |
| 2 | Electricity source | Installation capacity | 200kW |
| Power supply | 3P+N+PE |
| Voltage/Frequency | 380V/50Hz (Adjustment) |
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa |
| Flow | ~5 m3/h |
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Plastic Board Extrusion Machine
Plastic Board Extrusion Machine Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance,
balance 65% of the total value is to be paid before shipping at the
Seller’s factory.
Plastic Board Extrusion Machine Time of delivery
1) When the contract becomes valid, the machine should be delivered
within 45 days since receipt of the advance payment. And the
equipment will be in normal operation after debugging within two
weeks after arrival.
2) During production, provided that the Buyer requests to modify
the specification of the order, the Buyer shall notify the Seller
of this modification in written form. Upon receipt of the notice,
the Seller will quote to the Buyer the cost of this modification
and notify the Buyer of any possible delay due to this
modification.
Plastic Board Extrusion Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of
completion of commissioning at the buyer's site, and should be at
the latest within 14 months from the issuing date of Bill of
Lading.
