Plastic Profile Extruder Machine Upvc Profile Manufacturer In China
Plastic Profile Extruder Machine Production line composition
- Auto loader - Conic twin screw extruder HYZS51/110 and HYZS65/132-
Mold - Calibrating table - Haul off unit - Cutter - Stacker.
Plastic Profile Extruder Machine Auxiliary machines for optional
- Laminationa machine;
- Mixer;
- Crusher;
- Pulverizer;
Plastic Profile Extruder Machine HYPET Unique Advantages
a. A twin-screw extruder that is particularly suitable for marble
processing can be selected, and the Caco3 content can reach or more
than 300%
b. Special bimetallic high-calcium barrel screw, which can extend
the life, and the shelf life can be up to one year
c. It can be equipped with different shapes of molds, and can
provide a cost-effective formula
d. Surface treatment processes such as hot stamping, laminating,
and transfer printing can be selected.
e. Siemens PLC control system, equipped with world-famous brand
appliances such as ABB, Siemens, Schneider, ABB, etc.
Plastic Profile Extruder Machine Configuration list
Note: This table as attached file which is for selection of the
configuration on the whole line
| SN | Items | Choosing configuration | Other option |
| 1 | Production control system | PLC control system, Siemens | Digital is for option |
| 2 | Cooling system of the main control electric cabinet | Air conditioner cooling cabinet | Fan cooling for option |
| 3 | Main motor | AC motor with famous inverter | DC is for option |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts | Dynisco is for option |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. | External heat control option |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts | Standard Nitro with Alloy plating option |
| 7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option | Dosing device in single screw type. |
| 8 | Cutter | Dustless with blade type in new technology | Upstroke Saw Cutter. Old type |
Plastic Profile Extruder Machine Condition of use
1. Plastic Profile Extruder Machine Technical features of whole line
| SN | Specification | Description |
| 1 | Suitable material | PVC mixed powder |
| 2 | Max product size | 300mm |
| 3 | Production speed | 0.6-6m/min |
| 4 | Max. output | 150-240kg/h |
| 5 | Test and accept | Based on HYPET standard formula. |
| 6 | Center height | 1,000mm |
| 7 | Operation direction | From right to left |
| 8 | Color of equipment | HYPET white color |
| 9 | Control of whole production | Refer to the “configuration list”. |
| Note | Extrusion capacity will be changed according the processing
material and working conditions |
2. Plastic Profile Extruder Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 | Natural circumstance condition | Working place | Indoor use |
| Power source | No dangerous area |
| Humidity | 55%~85% no condensation |
| Temperature | ≤20℃ ℃ |
| 2 | Electricity source | Installation capacity | 100 kW |
| Power supply | 3P+N+PE |
| Voltage/Frequency | 380V/50Hz other can be option |
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa |
| Flow | ~15 m3/h |
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |

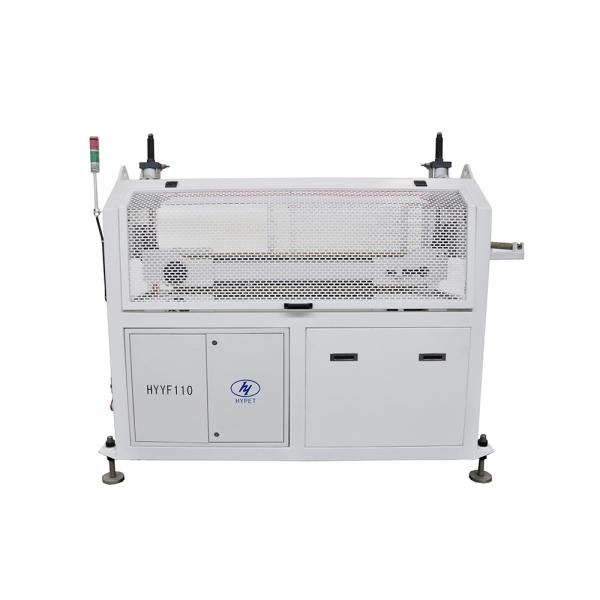

Plastic Profile Extruder Machine Photo:
Plastic Profile Extruder Machine Time of delivery
1) When the contract becomes valid, the machine should be delivered
within 60 days since receipt of the advance payment. And the
equipment will be in normal operation after debugging within two
weeks after arrival.
2) During production, provided that the Buyer requests to modify
the specification of the order, the Buyer shall notify the Seller
of this modification in written form. Upon receipt of the notice,
the Seller will quote to the Buyer the cost of this modification
and notify the Buyer of any possible delay due to this
modification.
Plastic Profile Extruder Machine Debugging charge
The buyer pays for the plane ticket of round-trip abroad and food
and accommodation of buyer’s country during debugging. And the wage
of technicians should be paid by the customer.
Plastic Profile Extruder Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of
completion of commissioning at the buyer's site, and should be at
the latest within 14 months from the issuing date of Bill of
Lading.
