Pvc Profile Production Line For Pvc Floor Tile Production

Ask Lasest Price
Brand Name :	SHENZHEN HYPET
Model Number :	HYYF-600 Pvc Profile Production Line
Certification :	CE, ISO9001
Price :	USD35000/set - USD65000/set
Payment Terms :	L/C, T/T
Supply Ability :	Pvc Profile Production Line 10 sets per month
Delivery Time :	Pvc Profile Production Line40-60 work days

Add to Cart

Product Details
Company Profile

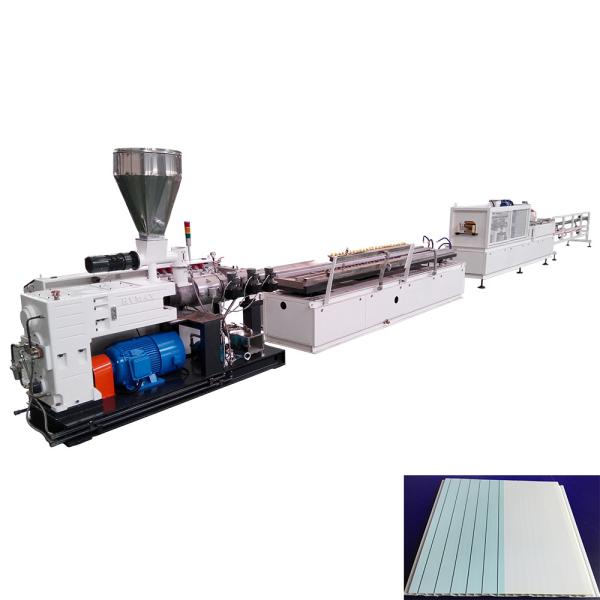

Pvc Profile Production Line For Pvc Floor Tile Production

Pvc Profile Production Line For Pvc Floor Tile Production

Pvc Profile Production Line Production line composition

Auto loader
Conic twin screw extruder HYZS80/156
Mold
Calibrating table
Haul off unit
Cutter
Stacker.

Pvc Profile Production Line Auxiliary machines for optional

Mixer;
Crusher;
Pulverizer;
Chiller;
Air compressor.

Pvc Profile Production Line HYPET Unique Advantages
a. HYPET special function extruder with high calcium formula can be equipped, and the shelf life is 1 year.
b. It can provide a variety of different shapes and different functions of decorative wallboard production technology.
c. Hot stamping, laminating, transfer and other surface treatment processes can be selected
d. High equipment configuration, convenient operation, strong automatic control
e. Traction cutting can be equipped with servo or frequency conversion control system to improve accuracy and reduce production costs
f. Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs

Pvc Profile Production Line Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line

SN	Items	Choosing configuration
1	Production control system	PLC control
2	Cooling system of the main control electric cabinet	Fan cooling.
3	Main motor	AC motor with famous inverter
4	Pressure sensor	HYPET individual temperature and pressure control in two parts
5	Core temperature adjustment control	Internal closed loop heat balancing system.
6	Material of screw & barrel type	Nitrided Alloy with bi-metal in two parts
7	Quantitative feeding system’s mixing function	Standard dosing device in twin screw type.
8	Cutter	Saw cutter

Pvc Profile Production Line Condition of use
1. Pvc Profile Production Line Technical features of whole line

SN	Specification	Description
1	Suitable material	PVC powder or WPC composite
2	Max product width	600mm
3	Production speed	0.3~2 m/min
4	Max. output	380kg/h
5	Test and accept	Based on HYPET standard formula.
6	Center height	1,000mm ± 50mm
7	Whole line size (L x W x H)	22,000 x 1,300 x 2,450mm
8	Operation direction	From right to left
9	Color of equipment	HYPET white color
10	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

2. Pvc Profile Production Line Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%-85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	200kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min

Pvc Profile Production Line

Pvc Profile Production Line Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.

Pvc Profile Production Line Time of delivery
1) When the contract becomes valid, the machine should be delivered within 45 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
