    High Capacity PVC Pelletizing Machine PVC Recycle Granule Production Line For Cable Transparent PVC Pellet

    Ask Lasest Price
    Brand Name : Hypet
    Model Number : Soft PVC Pelletizing line With PS120/28 Parallel Twin Screw Extruder
    Certification : ISO9001,CE
    Price : USD 67000/set Soft PVC Pelletizing line With PS120/28 Parallel Twin Screw Extruder
    Payment Terms : L/C, T/T
    Supply Ability : Soft PVC Pelletizing line With PS120/28 Parallel Twin Screw Extruder 50sets/month
    Delivery Time : Soft PVC Pelletizing line With PS120/28 Parallel Twin Screw Extruder 35~45days
    • Product Details
    • Company Profile

    High Capacity PVC Pelletizing Machine PVC Recycle Granule Production Line For Cable Transparent PVC Pellet

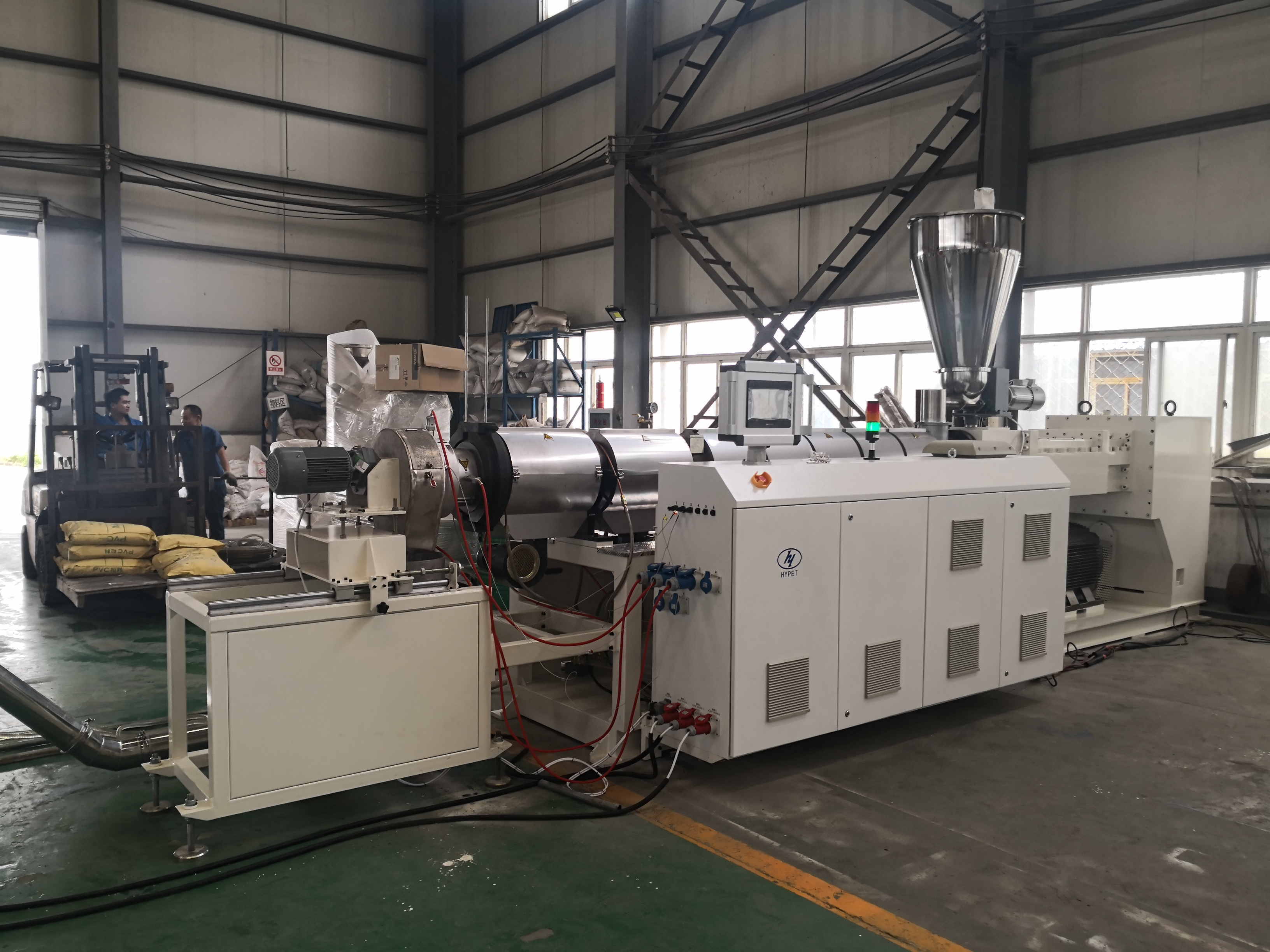

    1. Pictures of PVC Pelletizing Machine PVC Recycle Granule Production Line with PS120/28 Parallel Twin Screw Extruder



    2.​HYPET machine Feature and machine specification


    FeaturesHigh output800-950 kg/h
    High efficientStable quality, efficient operation make high qualified
    Energy savingIt can save energy 20-30% by machine and software.
    Intelligent AI controlPLC + HYPET software to control the operation automatically and save each formulation case.
    Machine informationProductsHard /soft PVC pellets
    Raw materialPVC with additives mixed powder
    Output Max950kg/h
    Working conditionElectric power3-phase, 380v +/- 10% , 50Hz (others for option)
    Cooling water≤ 20°C ≥ 0.3Mpa
    Compressed water> 0.3m3/min, > 0.5Mpa
    Overall sizes ( L*W*H)19300* 2800*3300 mm
    Machine General explanationCenter height1150mm
    Operation directionFrom right to the left ( other can be for option )
    Output

    The output capacity varies with the materials and the

    operation conditions.

    Technology remarksremains the right to improve the specification of the line, if there is any modification in the future, customer will not be informed.

    3.PVC Pelletizing Machine PVC Recycle Granule Production Line with PS120/28 Parallel Twin Screw Extruder

    SNMain ItemsQty
    PVC pelletizing line with HYPS120/28 extruder
    1HYPS120/28 parallel twin screw extruder1 set
    2Die head & cutter device with stainless cover1 set
    3Spiral separating hopper system with blower (the third hopper is as big as 2 cubic meter for storage.3 sets

    Remarks:

    1. Payment condition: Ex-works Wuhan China

    2. Payment method: 30% down payment by T/T and balance should be paid by T/T before Shipment

    3. Delivery period: 60 days since received the down payment.

    4. Warranty: one year

    5. Test:The line will be tested before shipment, running for one hour

    6. Validity period: 30 days after ensured.

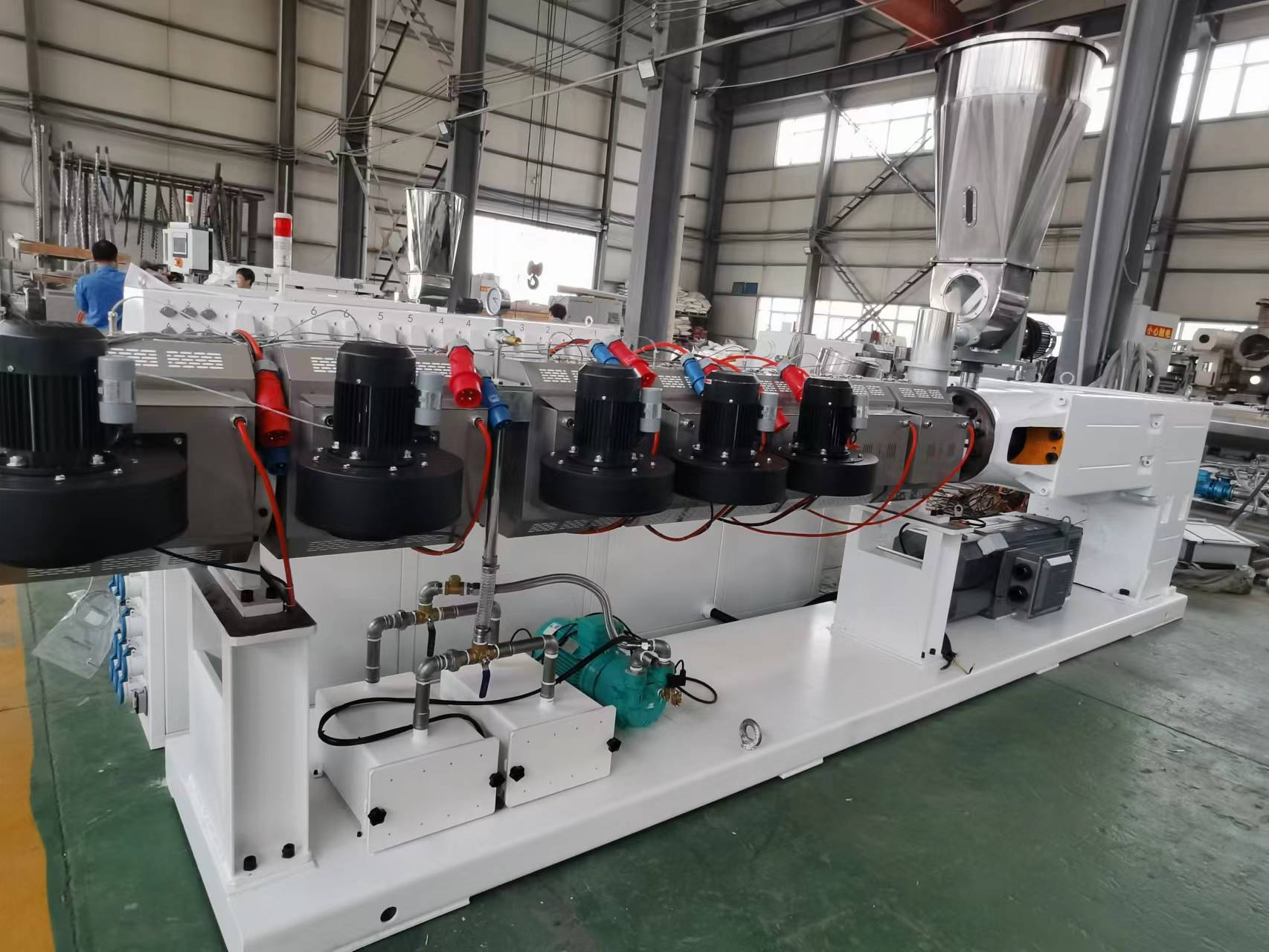

    4.Specification of the Machine HYPS120/28 Parallel Twin Screw Extruder

    SNParts nameSpecificationDescription
    1ExtruderExtruder modelHYPS-120/28 Parallel twin screw
    Output800-950kg/h for pipe
    Center height1150mm
    Dimension6300 x 1550 x 2800mm
    Weight7500kg
    2ScrewDiameterØ120 mm
    L/D28:1 for pipe production.
    Material38CrMoAlA + special alloy
    FinishNitrogen-filled (0.50~0.70mm depth) and polish
    Rotate speed0~45 r/min
    Core of the screwAuto control for temperature
    3BarrelBarrel Structure38CrMoAlA + special alloy
    Inside finishNitrogen-filled (0.50~0.70mm depth)

    4

    Temp/ pressure transducerQualityChina famous brand
    StructureSeparately senses both in pressure and temperature
    CableHigh isolated cable line
    ScreenBoth in monitor or screen display
    5Heater and cooling fansHeating control area7 zones
    Heating wayCast aluminum/ ceramics
    Heating power65 kW
    Cooling systemLow-noisy barrel cooling fan
    Cooling power0.37 kW x4 sets+0.5kWx2 sets
    Water/oil coolingOne zone in front part for option
    Heat isolatingSpecial isolating material and structure for energy saving.
    6HYPET Gear boxHousing materialDuctile iron
    Gear material20CrMnTiA
    Gear surfaceHardened and ground in high precision
    Axis material40Cr
    Temperature of oilControlled by two system,
    Rubber sealerImported special rubber sealer used
    BearingsWith famous and reliable brand.
    7

    Twin screw Dosing

    feeder

    Supplying material motor1.5 kW
    Speed range1-50 RPM
    Powder bridgeAnti powder bridge with high Caco3
    InverterDelta heavy loader type
    8Vacuum degas with selectorVacuum degree-0.04Mpa
    Motor power4 kw
    Vacuum tankEasy to be clean
    Auto clean deviceAir control auto Clean device for option.
    9Driving motorAC motor power110 kW in Siemens brand
    AC inverter controllerDelta in heavy type
    10Electrical Control systemPLC systemWhole Siemens PLC control system with HYPET soft ware.
    Electric componentsBranded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
    Extra temperature zone for die head10 zones
    Electric cabinet feature

    1, all cable and connectors are with Wire aviation plug

    2, electric cabinet can be disassembled with easy,

    3, all cables and senses cables are strong enough with long life .

    4, PLC monitor control system with button adjustment for controlling screw speed with easy .


    5.Die head with stainless cover

    SpecificationDescription
    Cutting holesin five line
    Pelletizing plate materialStainless steel with high quality
    Cutter motor power3kw
    The knife4 sets
    Holes plate38CrMoAlA steel with nitrogen heat treatment.

    6.​Spiral separating hopper system with blower

    SpecificationDescription
    MaterialStainless steel 304
    ApplicationCooling
    Cooling methodBlower
    The motor of blower4 kw
    Number of cooling stages3 stages, each stage including fan and hopper
    The volume of the first two hopper600 L
    The volume of the last hopper1700L or 2 tons of material with simple valve switch.

    The equipment you may need for your production:


    1.Screw type auto loader

    SNSpecificationDescription
    1TypeScrew type
    2MaterialStainless steel
    3Output by transportation1100kg/h
    4Motor power3kw

    2.Big Vibrating screen device

    SNSpecificationDescription
    1Material for contacting PVC pelletsStainless steel 304
    2VibratoringTwo motors
    3power0.75kw*2
    4Output1000kg/h

    3.Hot Cold mixer 500/1000


    SNNameTypeSpecificationDescription
    1

    Mixer
    SRL-

    500/1000

    Hot mixing tankHot mixing general capacity500L
    Hot mixing effective capacity375L
    Feeding capacity≤250kg/pan
    Output≤1000kg/h
    Motor power75 kW AC Motor
    Hot mixing tank material1Cr18Ni9Ti
    Tank wall thickness8mm (1Cr18Ni9Ti)
    Tank bottom thickness10mm (1Cr18Ni9Ti)
    Mixing time≤10min/pan( model material ),
    ≤12min/pan (pipe material )
    Cold mixing tankCold mixing cubage1,000L
    Cold mixing effective cubage1,000L
    Motor power640L
    Motor power18.5 kW
    Mixing blade materialZGlCr18Ni9Ti
    Tank wall thickness6mm
    Tank bottom thickness10mm (Jointing after pressing in shape for clearing )
    Mixing blade rotating speed60 r/min
    Vertical moving controlPneumatic
    Cooling time≤10min/pan
    Electric control cabinet800 x 500 x 1800mm
    Weight5800kg
    Dimension5,580 x 2,700 x 3,432mm

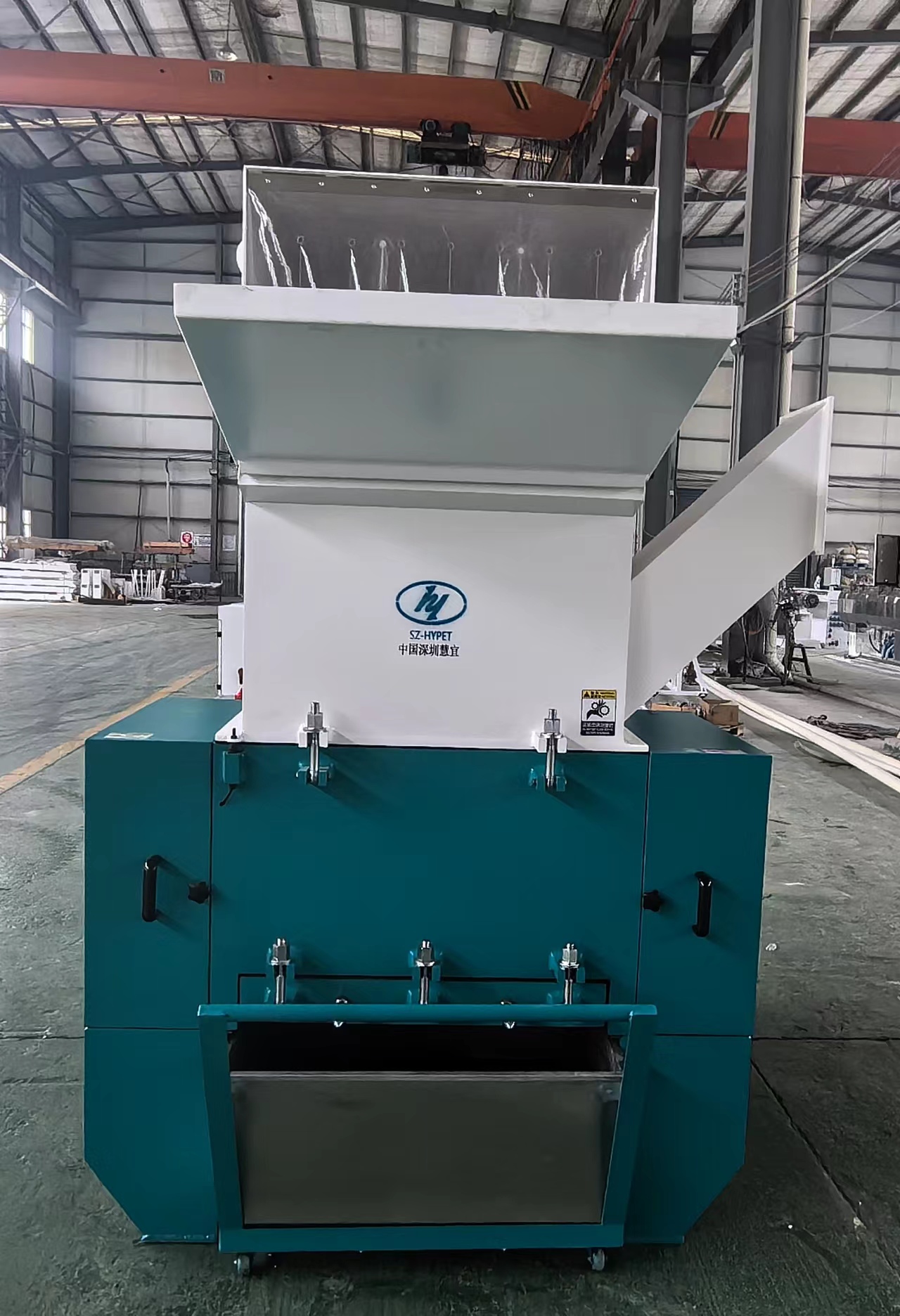

    4.HYP30 Strong Crusher for Pipe recycling 30HP, 400kg/h


    SNItem nameDescription
    1ModelHYP-30
    2Main motor power30 Hp
    3Ability300-700kg/h
    4Feeding gate720*460 mm
    5Fix * rotating knives qty4*21pcs
    6Speed520 r/min
    7Mesh sizes12 mm
    8For PVC pipe sizesthin 315mm pipe, and standard 250mm smaller
    9Dimension1630*1340*1910 mm
    10Weight1600kg

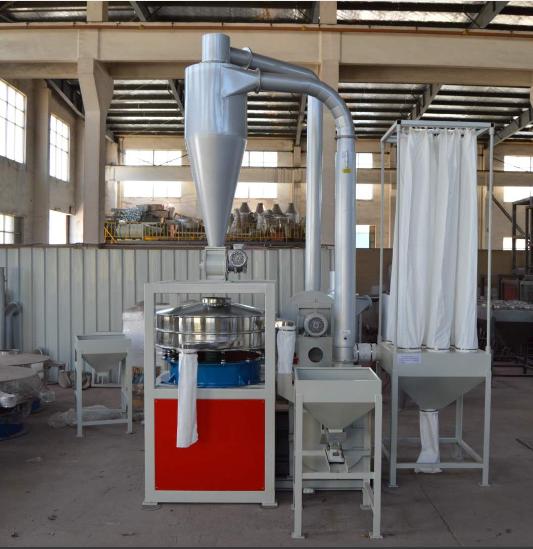

    5.Pulverizer SMW-500


    SNNameDescription
    1ModelSMW-500
    2Diameter of disc(mm)Ø483±1
    3Rotary blade24
    4Static blade12
    5Main motor power(kw)37
    6Capacity(kg/h)200-300

    After -sales Service


    Itemsquantity
    Guarantee period1 year but the service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
    Training before shippingBuyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
    Technical documentsElectric principle drawing, operation manual, and electric parts manual etc
    Seller engineersSeller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
    Contacts wayWhatsapp, wechat, mobile, etc +86 13823232106
