High Output Plastic Extruder 65 75 90 107 120 135/28 Parallel Double Screw Extruders

Ask Lasest Price
Brand Name :	Hypet
Model Number :	PS65 75 90 107 120 135/28
Certification :	ISO9001, CE
Price :	USD 24000-64000/set
Payment Terms :	L/C, , T/T
Supply Ability :	Plastic Extruder with parallel twin double screw 50sets/month
Delivery Time :	Plastic Extruder with parallel twin double screw 35~45days

Add to Cart

Product Details
Company Profile

High Output Plastic Extruder 65 75 90 107 120 135/28 Parallel Double Screw Extruders

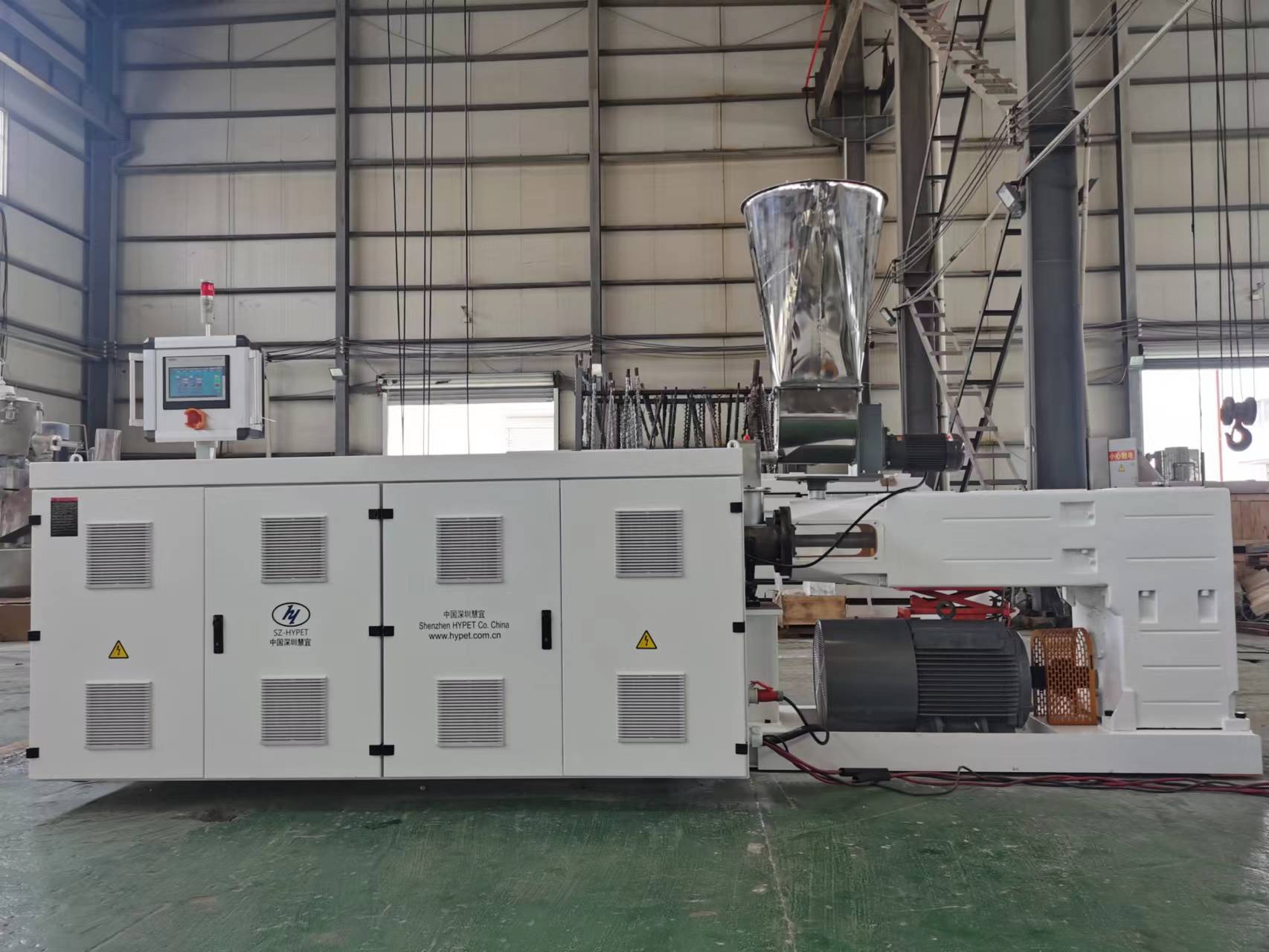

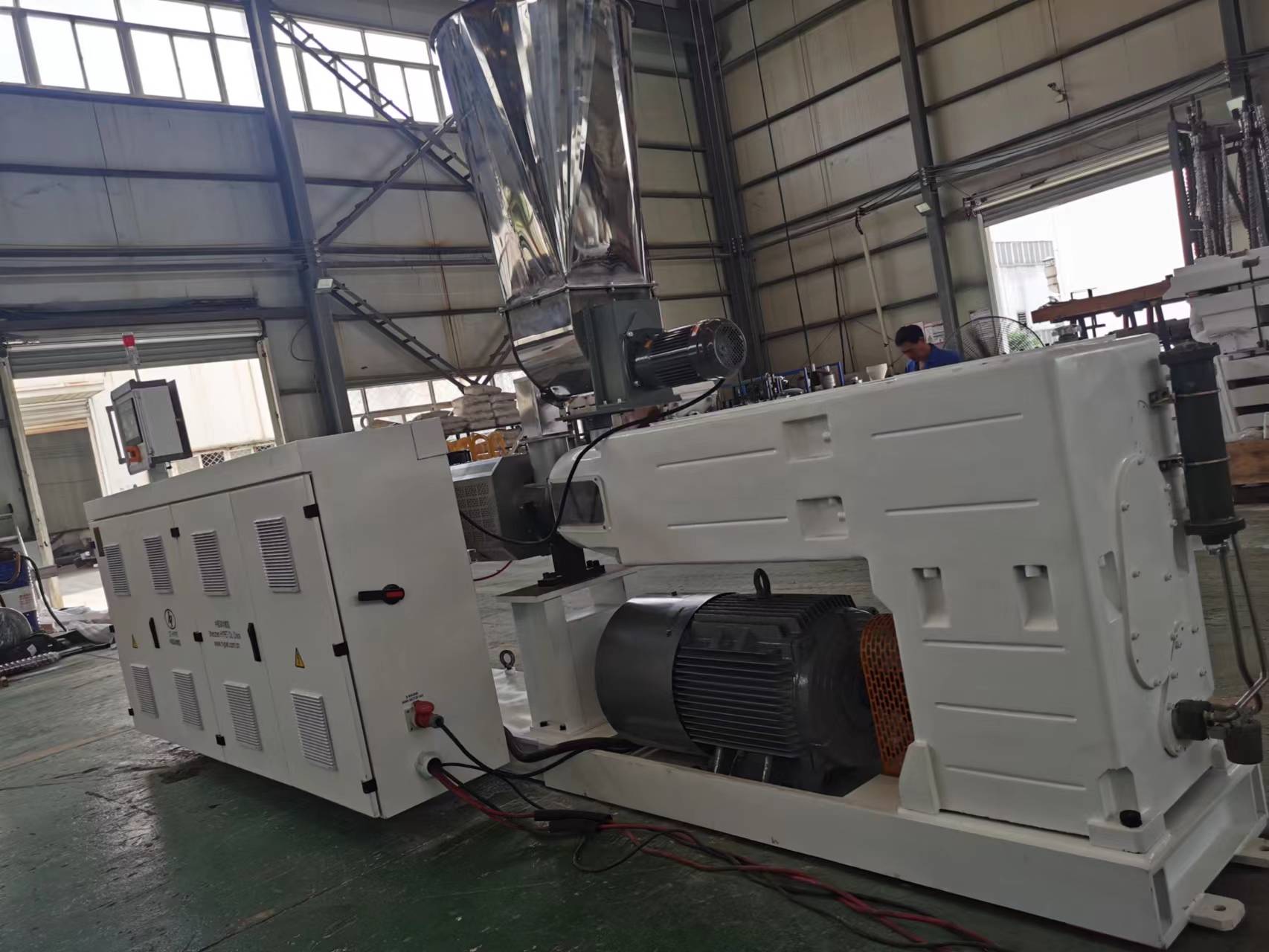

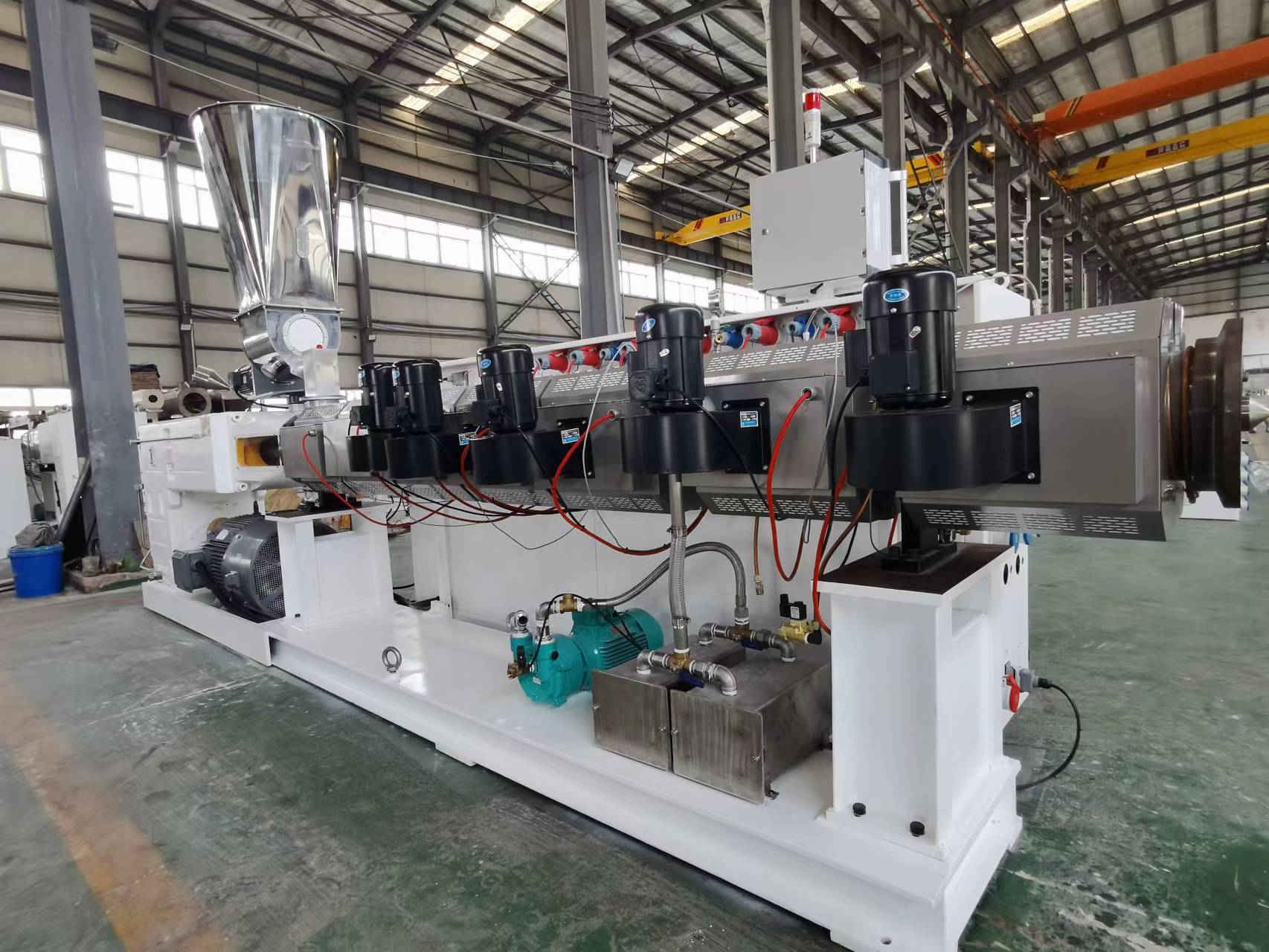

1. PVC Pipe/Profile/Granuels Extruder making Machine PS90/28 Pictures:

2. Speciality of HYPET Parallel Twin Screw Extruder:

SN	Items	Speciality
1	High Output	500kg/h
2	Energy saving	Energy saving in heaters & driving Transmission system & Plasticizing by 15-20% Main motor 55kw
3	High quaity in machine parts	ABB heavy type inverter, Siemens Schnaider, Omron,Rkc components ,Siemens Motor, Anti-Bridge twin screw dosing feeder. Big Volume Electric cabinet with good cooling device.
4	HYPET Gear Box	High torque, Lower oil temperature control , low noise,and non leakage of oil.

3.Technical specification:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYPS-90/28 Paralllel twin screw
		Output	450-520kg/h for pipe
		Center height	1100mm
		Dimension	4200 x 1600 x 2605mm
		Weight	4200kg
2	Screw	Diameter	Ø90 mm
		L/D	28:1 for pipe production.
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~45 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Barrel Structure	38CrMoAlA + special alloy
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)

4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display
5	Heater and cooling fans	Heating control area	7 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	45 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.37 kW x4 sets+0.5kWx2 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	With famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	ABB heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	2.2 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	55 kW heavy load type.
9	Driving motor	AC inverter controller	Delta heavy type inverter
10	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET AI soft ware.
		Electric components	Branded in Siemens, Schneider RKC Omron, Delta and small unimportant parts in China famous brand
		Extra temperature zone for die head	8 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life .

5.Cooperative Brands:

6.Exhibition:
