    90-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/38

    Ask Lasest Price
    Brand Name : Hypet
    Model Number : 90-200mm PE HDPE Pipe Production Line
    Certification : ISO9001,CE
    Price : USD 72000/set
    Payment Terms : L/C, T/T
    Supply Ability : 90-200mm PE HDPE Pipe Production Line 100set per year
    Delivery Time : 90-200mm PE HDPE Pipe Production Line 65working days
    • Product Details
    • Company Profile

    90-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/38


    HYSJ75/38 Single screw extruder with 90-200mm HDPE PE gas pipe water supply pipe production line:

    SNMain ItemsQty
    90-200mm PE pipe line with SJ75/38 extruder
    1HYSJ75/38 single screw extruder 132kw motor power1 set
    2HY25/25 single screw extruder for color strip1 set
    3Vacuum auto loader AL7001 set
    4Hot dryer HD6001 set
    5Co extrusion die: G200 high speed in 2 pressures1 set
    6Vacuum tank in 9,000 mm1 set
    7Cooling tank in 6,000 mm2 sets
    8Haul off unit, high speed,0.28-2.8 m/min, three claws1 set
    9Planetary Chipless cutter in round knife type1 set
    10Stacker 4-6m1 set

    Remarks:

    1. Condition of the price and destination Ex-works Wuhan China

    2. Payment method: 30% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C on time .

    3. Delivery period: 70 days after received the deposit.

    4. Validity period: 30 days after ensured

    5. Warranty: one year for normal, barrel and screw and gear box is for 1.5 years

    6. Training: both in china and in the customer shop are available.

    7. If necessary, The supply can send the engineers to the buyer for commission under the condition.


    Technical specification:


    1.HYSJ-75/38 single screw extruder:

    SNParts nameImageSpecificationDescription
    1ExtruderExtruder modelHYSJ-75/38 single screw

    Output max400 kg/h
    Center height1,100mm
    Weight3,300kg
    2Electrical Control system90-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/38Detachable control panelDigital display, adjusting knobs
    Components brandSiemens, RKC, ABB, etc.
    Note: PLC computer control system can be optional.
    Features

    1. Cabinet is detachable, easy to install, maintain and transport;

    2. With air conditioner;

    3. Adopt the world famous brand electrical components, such as Siemens, ABB, RKC Schneider, and so on.

    5Gear boxHousing materialDuctile iron QT-500
    Gear material20CrMnTi
    Gear surfaceHardened and ground in high precision
    Axis material40Cr
    6Driving motorAC motor power110 kW
    AC inverter controllerDelta brand
    7Electrical Control system90-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/3890-200mm PE HDPE Pipe Production Line Water Supply Floor Heating Pipe With High Efficient Single Screw Extruder SJ75/38PLC systemWhole Siemens PLC control system with HYPET soft ware.
    Control option:RKC and traditional control can be offered
    Electric componentsBranded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
    Extra temperature zone for die head10 zones
    Electric cabinet feature

    1, all cable and connectors are with Wire aviation plug

    2, electric cabinet can be disassembled with easy,

    3, all cables and senses cables are strong enough with long life .

    4, PLC monitor control system with button adjustment for controlling screw speed with easy .


    2.HY25/25 single screw extruder:

    SpecificationDescription
    Barrel38CrMoAIA,nitrification
    Screw38CrMoAIA,nitrification
    Dia. of screwØ30mm
    Screw L/D25:1
    The drive power1.5 kW
    The motor controlAC inverter, ABB

    3.Vacuum auto loader :

    SpecificationDescription
    ModelAL700
    Working formInductive type
    Power1.85kw, 3P
    Capacity700kg
    volume12L
    Feeding hose diameterФ38mm

    4.Vertical Hot dryer:

    SpecificationDescription
    Model numberHY-HD600
    Capacity600 kg
    Heating20kW
    Power380V 3P 50HZ

    5.Die head: G200 high speed in 2 pressure grade:

    SpecificationDescription
    Design methodAccording to tech from Germany
    Sizes for pipe90-200mm with 2 pressures.
    Sizes:90/110/160/200mm
    Material of calibrating sleevesCopper
    Flow channelChrome plated
    Pipe Bright functionWith HYPET brighter
    HeaterMica stainless steel heaters

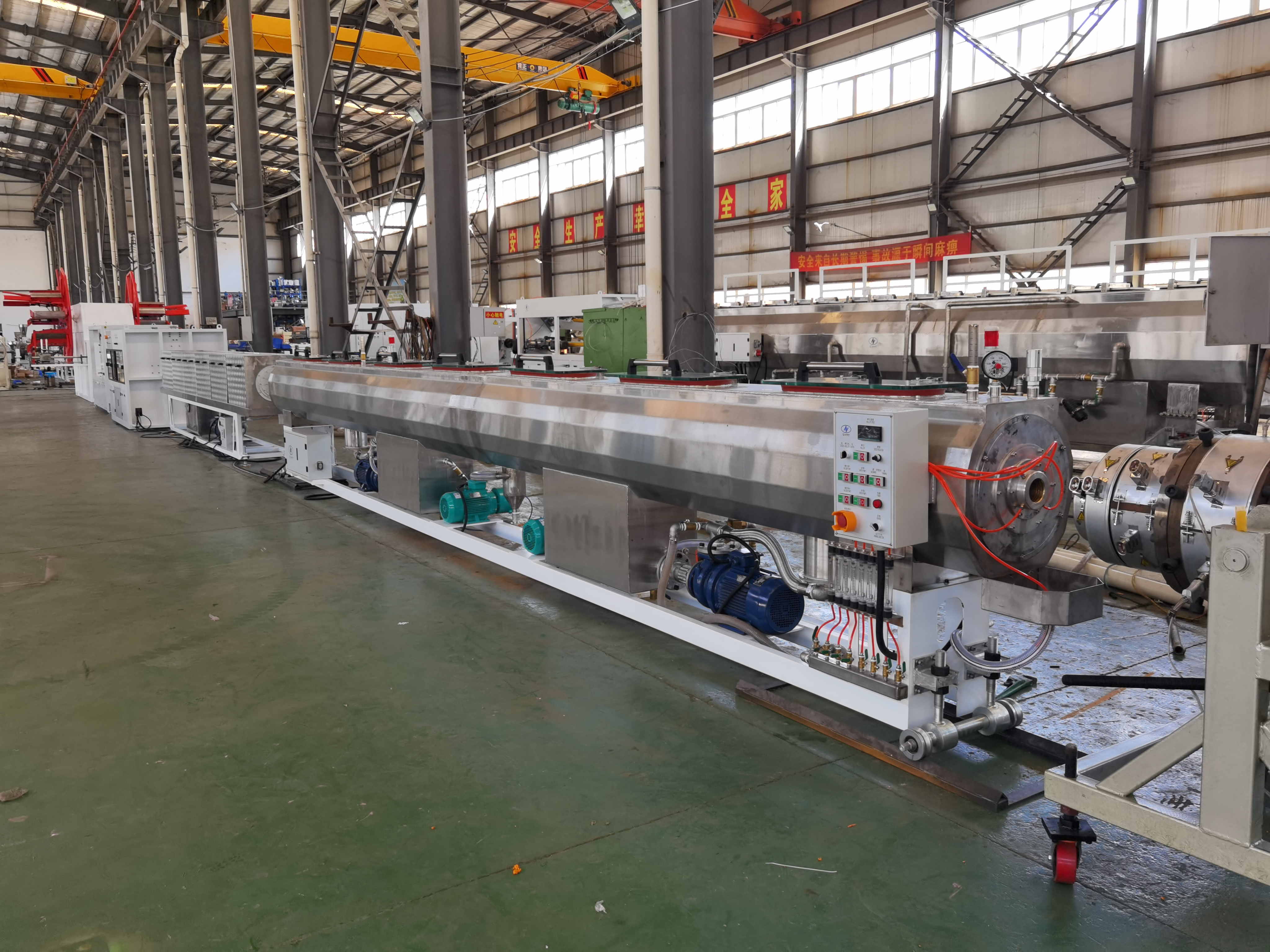

    6.Vacuum tank in 9,000 mm:

    SpecificationDescription
    MaterialStainless steel 304
    Working rangeØ90-200mm
    Length9000mm (1500+7500)
    Center height1100 mm
    Vacuum Tank typeOne tank, in two chamber
    No. of pipes1 pipe
    Movable motor power0.75 kW
    Moving range front & rear700 mm
    Left and right adjustment50mm
    Cover on the topaluminium alloy
    Vacuum pump in first part5.5kw *1 set
    Vacuum pump in second part5.5kw *1 set
    Two parts of tankVacuum controlled by AC inverter.
    Water pump in first part5.5kw *1 set
    Water pump in second part5.5kw *1 set
    What spray pipe numbers6 pieces
    Nozzle typeAtomized intensive cooling
    Spraying mouth1” x Ø4-Ø3
    Pipe supporterNylon supporter plate
    Back and forth800mm in 0.75kw
    Cross movement120mm
    Up and down100mm
    Filter2 sets in G2” with by pass way
    Clean the filterBy pass line for cleaning the filter
    Vacuum cycloneYes, with it
    Silence functionSilence device for each vacuum pump

    7.Cooling tank in 6,000 mm:

    SpecificationDescription
    Pipe rangeØ90~Ø200mm
    Length of vacuum box6,000mm
    ConstructionSpraying method
    Pump power4 kW x 1 set
    No.of nozzle140 pcs
    No.of filter1 set
    No. of bypass1 set
    Water level control wayFloat valve
    Cover materialToughened glass
    Spray box materialStainless steel 304
    Water temperature controlAutomatic regulating valve
    Input pipeG1”
    Output pipeG2”

    8.Haul off unit, 3 claws:

    SpecificationDescription
    Haul off typeUpstroke in 3 claws type haul-off
    Center height1000mm
    For Pipe sizeØ90~Ø200mm
    Driving methodDriven by rubber blocks
    Driving speed1.2-12 m/min
    Motor typeAC inverter motor
    Motor power1.1 kW x 4 sets in ABB inverter
    Contacted caterpillar length1,800mm
    Max. driving power25,000 N
    Gear boxHard surface gear grind type,
    Width of caterpillar74mm
    Caterpillar controlOne cylinders in each chain side
    Metering systemCode installed
    Adjusting modePneumatic
    Press pressure on the pipeAdjusted by pneumatic valves
    Down caterpillar positionFixed
    Air pressure0.4-0.6Mpa
    Max opening distance160mm

    After -sales Service

    Itemsquantity
    Guarantee period1 year but the service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
    Training before shippingBuyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
    Technical documentsElectric principle drawing, operation manual, and electric parts manual etc
    Seller engineersSeller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
    Contacts wayWhatsapp, wechat, mobile, etc +86 13823232106
    Company email :info@hypet.com.cn
