Auto CNC Controlled PVC Pipe Threading Making Machine For Different Sizes 250/315/400/500mm

Production Line Brief introduction:

Items

specification

Conic Screw Extruder

1, HYPET new type high output extruder HYZS92/188 with high output and lower energy cost.

2, Gear box is with high torque by strong gear and frame case with long life

3, heaters with heat protection which can make the energy saving

4, Barrel and screw are bimetal type for longer working life

Die head

1, all parts are made by CNC machine tool to ensure the flowing equal well ,

2, with shining device,

3, with special structure that is easy to change the sleeve without stopping .

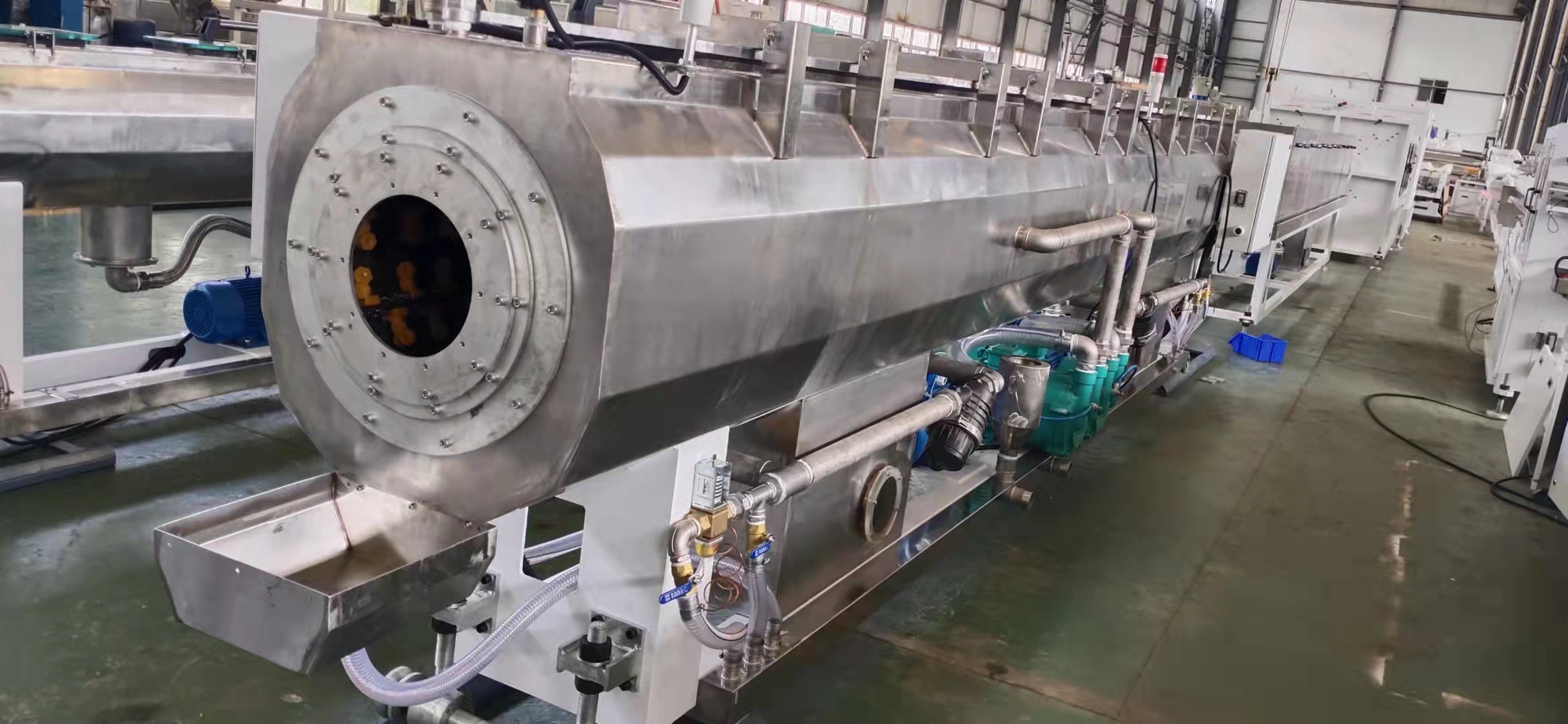

Vacuum Tank

1, ALL are made by 304 Stainless steel material without painting.

2, water level and vacuum are controlled automatically

3, Install vacuum pressure relief muffler to realize that the sound of the

Haul off

1, 4 Claw type haul off to ensure stable haul off force.

2, Driven by AC motor and controlled by PLC system

3, Haul off Gear box are strong with harden gear surface.

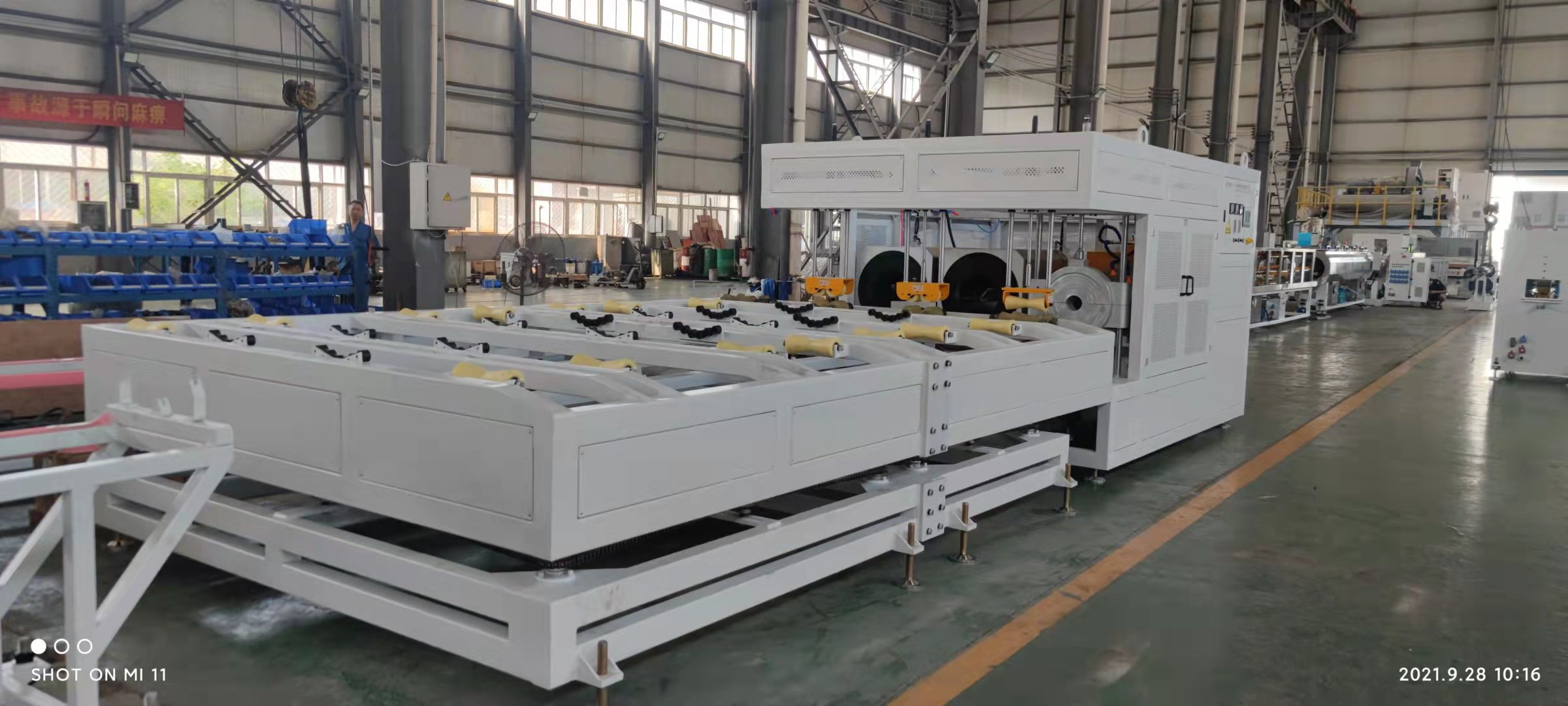

Cutter

1, planetary cutter with round saw type,

2, with servo following control system to ensure the pipe speed when cutting.

3, arrangement of the cutter in two dependent position.

HYZS92/188 conic twin screw extruder with 250-500mm under ground water supply PVC pipe production line :

SN	Parts name	Quantity /set
1	High efficient type Conic twin screw extruder HYZS92/188 in output of 900 kg/h with 110kw main motor	1
2	Auto-loader for extruder in screw type	1
3	High output type Die head with calibrators sizes in 250-500mm	1
4	Vacuum tank in stainless steel without painting , 6 m	1
5	Spray cooling tank in stainless steel without painting 6m	1
6	Haul off unit 6 claws type AC motor controlled by ABB inverter	1
7	Planetary type cutter	1
8	Stacker	1

Remarks:

1. Condition of the price and destination Ex-works Wuhan China

2. Payment method: 40% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C on time .

3. Delivery period: 70 days after received the deposit.

4. Validity period: 30 days after ensured

5. Warranty: one year for normal, barrel and screw and gear box is for 1.5 years

6. Training: both in china and in the customer shop are available.

7. If necessary, The supply can send the engineers to the buyer for commission under the condition.

Technical specification:

SN	name	Image	Specification	Description
1	Extruder		Extruder model	HYZS-92/188 conic twin screw
			Max. output	900-1050 kg/h
			Center height	1,150mm
			Weight	7,500kg
2	Screw		Diameter	Ø92/188 mm
			Material	38CrMoAlA + special alloy
			Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
			Rotate speed	0~48 r/min
			Core of the screw	Auto control for temperature
	*Features*	Screw has internal closed loop heat balancing system by means of distilled water.

3	Barrel		Material	38CrMoAlA with bi-metal type
			Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
			Heating control area	7 areas
			Heating way	Cast Aluminium heater
			Heating power	50 kW
			Cooling system	Low-noisy barrel cooling fan
			Cooling power	0.37kW 3+0.5kw2
	*Features*	Barrel and screw Nitro Alloy with bi-metal type for longer working life.
4	Gear box		Housing material	Ductile iron HT-300
			Gear material	20CrMnTi
			Gear surface	Hardened and ground in high precision
			Axis material	40Cr
	*Features*	1. The harden and ground gear box is made with German technology. 2. Twin output shaft Helical Gear Box. Gears are hardened and ground. Both output shafts are integral with high capacity thrust bearings to absorb axial thrust generated during the extrusion process 3,the thrust bearings is near to the screw which can be more stronger
5	Melt pressure/ Temp		Melt pressure	0-50Mpa measuring
			Melt Temperature	0-400°C measuring
			Melt shows	Separately
6	Dosing feeder		Supplying material motor	1.5 kW
			Speed range	1-50 RPM
			Inverter	ABB

7	Vacuum degas with selector	Vacuum degree	-0.004Mpa
		Motor power	4 kW
		Extra temperature zone for die head	15 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug, so it can be taken apart with easy
8	Driving motor	AC motor power	110 kW
8	Driving motor	AC inverter controller	ABB
9	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
