High Output 160/200/250mm 6"-10"inch PVC UPVC Pipe Production Machines With Energy Saving Conic Twin Screw 80/156

Ask Lasest Price
Brand Name :	Hypet
Model Number :	ZS80/156 160-250mm PVC water drainage sewage pipe
Certification :	ISO9001, CE
Price :	USD 69500/set
Payment Terms :	L/C, T/T
Supply Ability :	160-250mm PVC water drainage sewage pipe 100set per year
Delivery Time :	160-250mm PVC water drainage sewage pipe 65working days

Add to Cart

Product Details
Company Profile

High Output 160/200/250mm 6"-10"inch PVC UPVC Pipe Production Machines With Energy Saving Conic Twin Screw 80/156

Production Line Brief introduction:

SN	Items	Speciality
1	High Output	For PVC pipe, 500-550kg/h
2	Energy saving	Energy saving in heaters & driving Transmission system & Plasticizing by 15-20%
3	Good quality in Barrel and Screw	Barrel in two parts with special alloy, if Caco3 is 200phr, it ensure 18 mothes, if Caco3 is less than 100phr, it will be ensured for 3 years or more
4	High quaity in machine parts	Siemens PLC control system, ABB heavy type inverter, Siemens Schnaider, Omron,Rkc components ,Siemens Motor, Anti-Bridge twin screw dosing feeder. Big Volume Electric cabinet with good cooling device.
5	Low Cost Performance	Price is in middle , output is higher , using Life is longer, So, using HYPET one is as equal 1.5 times as normal extruder.
6	HYPET Gear Box	High torque, Lower oil temperature control , low noise,and non leakage of oil.
7	Block Type Extruder	All parts are standardized and labeled, which is convenient for later replacement and maintenance, and also convenient for customers to purchase standard parts for assembly, saving cost and time
8	HYPET other special offerings	1, Provide special processing aids HYA-1 and Modi Stearic acid with special technical content to directly improve the quality of PVC products and greatly reduce the cost, 2, Offering On-Line Technical Service for free, Offering Technical Engineers service for big project or solving key technical items, 3, Offering matched good down stream equipment for plastic pipe profile, sheet /board pellets Etc.

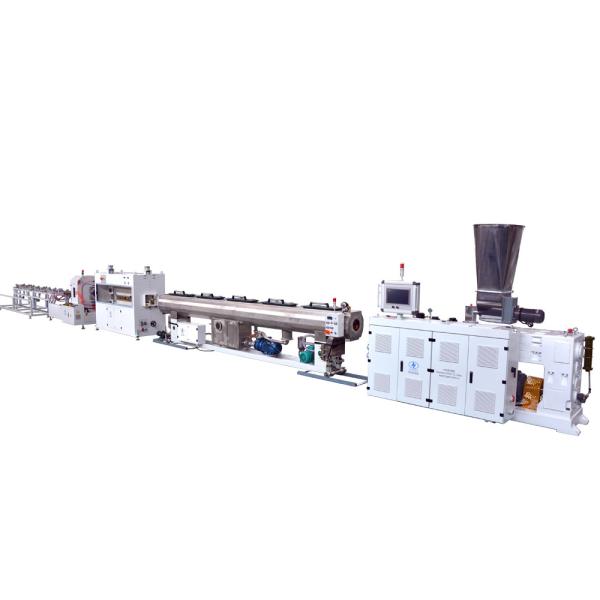

HYZS80/156 conic twin screw extruder with 160-250mm PVC water pipe drainage sewage pipe production line :

SN	Parts name	Quantity /set
1	High efficient type Conic twin screw extruder HYZS80/156 in output of 520 kg/h with 55kw main motor	1
2	Auto-loader for extruder in screw type	1
3	High output type Die head with calibrators sizes in 160-250 mm as above size list in middlel wall thickness sizes	1
4	Vacuum tank in stainless steel without painting , 6 m	1
5	Spray cooling tank in stainless steel without painting 6m	1
6	Haul off unit 4 claw type AC motor controlled by ABB inverter	1
7	Planetary type cutter	1
8	Stacker	1

Remarks:

1. Condition of the price and destination Ex-works Wuhan China

2. Payment method: 40% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C on time .

3. Delivery period: 70 days after received the deposit.

4. Validity period: 30 days after ensured

5. Warranty: one year for normal, barrel and screw and gear box is for 1.5 years

6. Training: both in china and in the customer shop are available.

7. If necessary, The supply can send the engineers to the buyer for commission under the condition.

Technical specification:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-80/156 conic twin screw
		Output	500-550kg/h for pipe
		Center height	1100mm
		Dimension	3700 x 1400 x 2605mm
		Weight	4100kg
2	Screw	Diameter	Ø80/156 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~38 r/min
		Core of the screw	Auto control for temperature (Oil cooling will be for option )

3	Barrel	Barrel Structure	In two parts, front part will be with special alloy inserted.
		Big Part of the barrel	38CrMoAlA
		Fron part of the barrel	SKD11 with heat treatment
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)

4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display
5	Heater and cooling fans	Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	30 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.3kwx2 sets +0.5kW x 1 set
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	Wih famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.1 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	ABB heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	3 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	55 kW in Siemens brand
9	Driving motor	AC inverter controller	ABB in heavy type

10	Electrical Control system	PLC system/or RKC components control	Whole Siemens PLC control system with HYPET soft ware. / or RKC components control system
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB/or FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	10 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy . / Or with digit monitor instrument control system, main function is the same as PLC control .

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
Company email :	info@hypet.com.cn
