315/355/400/500/630mm 12"-24"inch PVC UPVC Pipe Production Line With HYPS120/28 Parallel Twin Screw Extruder

Production Line Brief introduction:

SN	Items	specification
1	Electric wires	Select high purity copper wires with high quailty insulating material
2	Over load protection	Overload protection for all motors with heat relay and circuit breakers, and heater and cooling will be protected by circuit breakers
3	Phase protection	Electric cabinet must be with Phase Sequence and phase failure protection
4	Additional heater zones	3 additional temperature control zones of barrel system will be added.
5	Additional heater zones	3 additional temperature control zones of die heat system will be added.
6	Add Spare parts	Vacuum /water pumps, and gear box with motor for haul off , cutter hydraulic parts etc, see the spare parts list.
7	Water level control	The water level control should be electrical level control
8	Water inlet and outlet	The water inlet and outlet should be automatic valve controlled
9	Motor driven control	DRIVE of the extruder main motor to be DELTA.
10	Vacuum tank panel	vacuum tank control panel should include speed indicator of the haul off.
11	Main control panel	The main control unit should include a synchronization switch for the speed of main extruder, feeder and haul off simultaneously and relatively with each other and to keep synchronization between them.
12	Motor coupling	The main motor coupling will be the same as before
13	panel direction	The control panel direction will be the same as before
14	Guarantee time	Guarantee time is one year after the machine commissioning finished.
15	Maintenance manual	Two copies of Maintenance manual
16	Lubricants requirement	the specification of lubricants
17	PLC software	PLC software will be offered together with the machine
18	Operation manual	Two copies of Operation manual

HYPS120/28 parallel twin screw extruder with 315-630mm PVC pipe production line :

Pipe Dia mm	315-630mm
Application	PVC Pipe
Output	900kg/h
Act speed	0.5-1.2 m/min
Extruder	HYPS120/28-110kw
die sizes	315/400/500/630

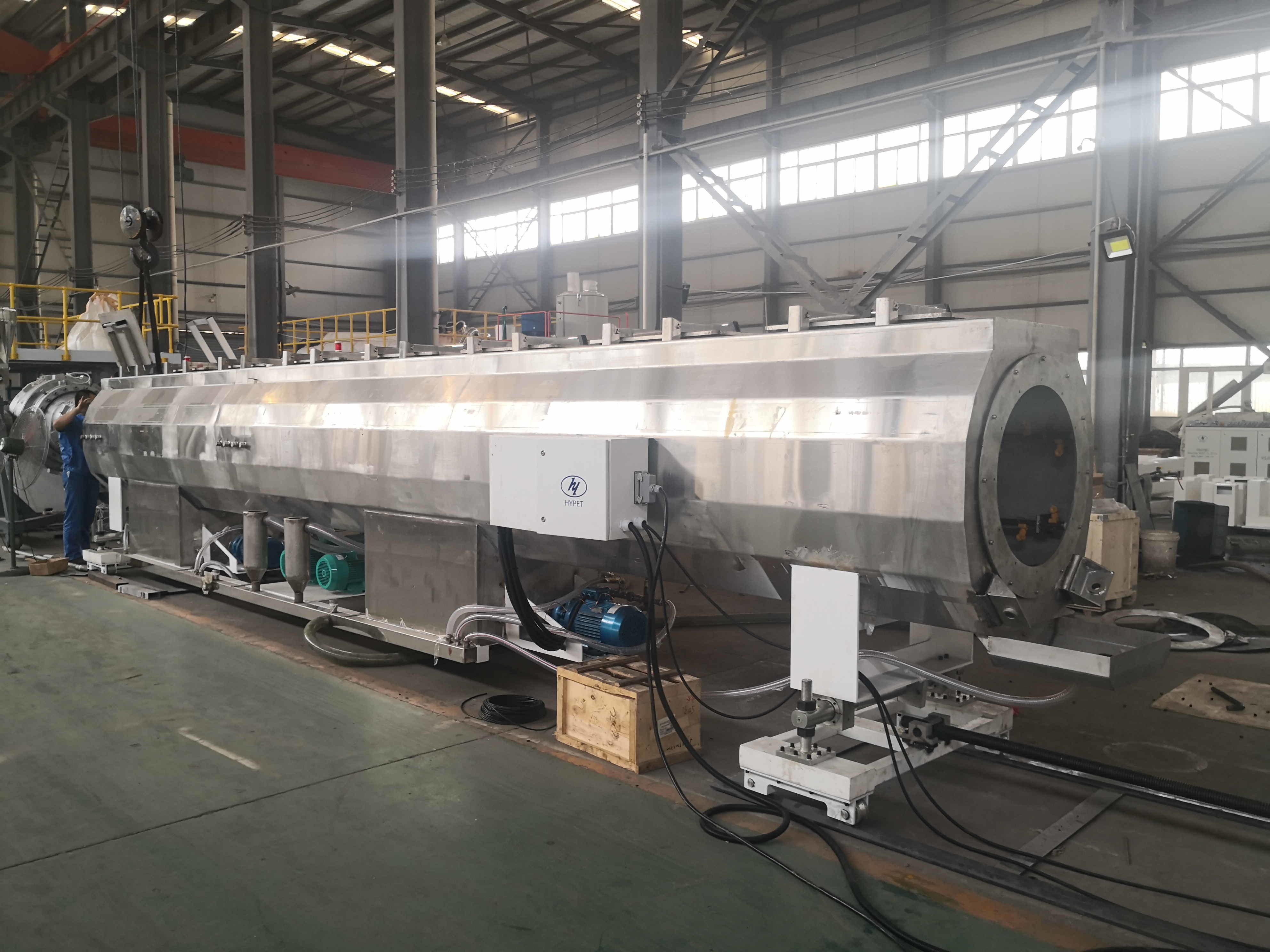

Vacu Tank	9 m Vacu *1
Cool Tank	6m Cool *1

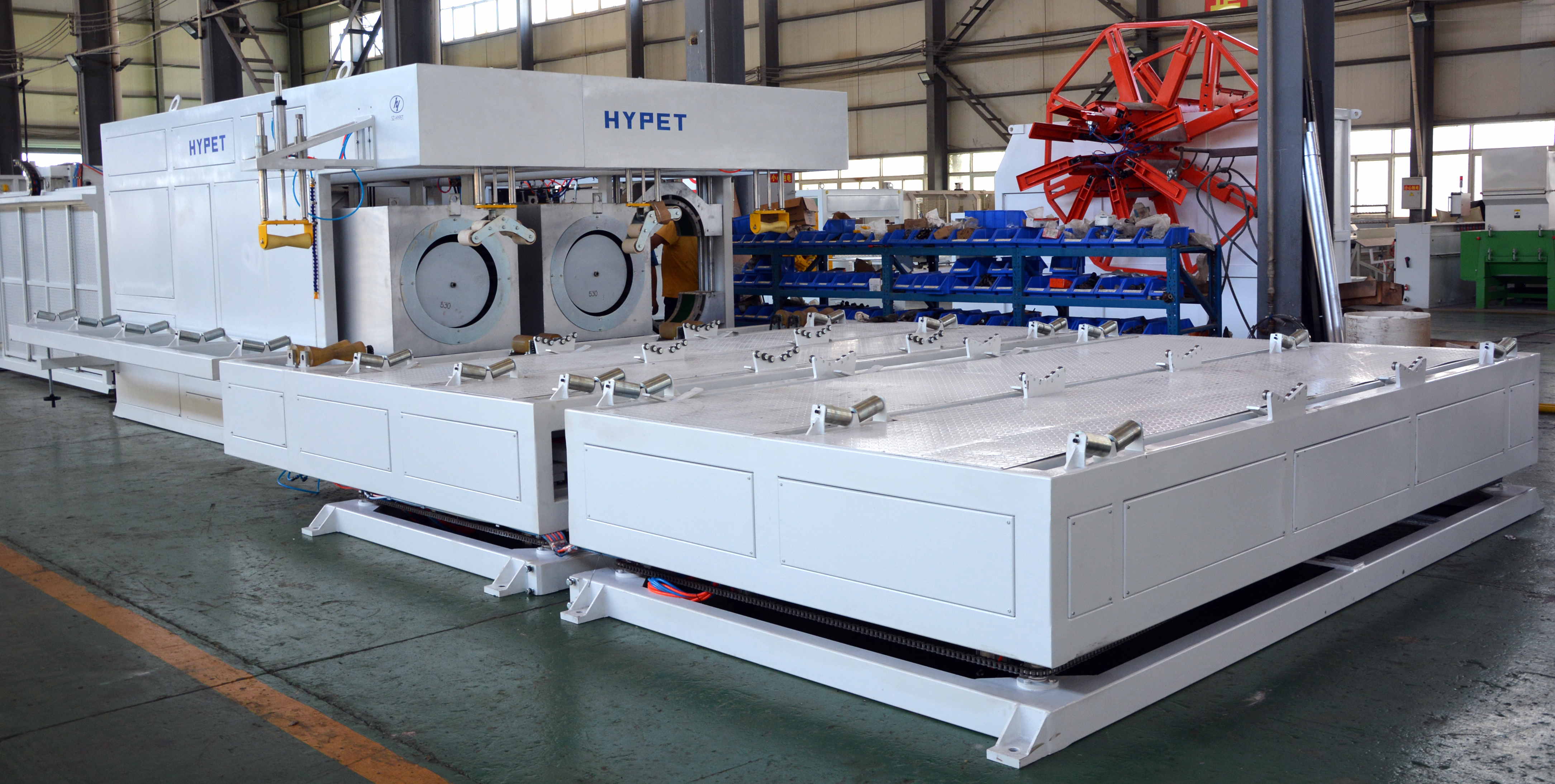

Haul Off	6 claws Servo
Cutter	planety+chafer
Stacker	4 m

Remarks:

1. Condition of the price and destination Ex-works Wuhan China

2. Payment method: 40% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C on time .

3. Delivery period: 70 days after received the deposit.

4. Validity period: 30 days after ensured

5. Warranty: one year for normal, barrel and screw and gear box is for 1.5 years

6. Training: both in china and in the customer shop are available.

7. If necessary, The supply can send the engineers to the buyer for commission under the condition.

Technical specification:

SN	Parts name	Specification	Description

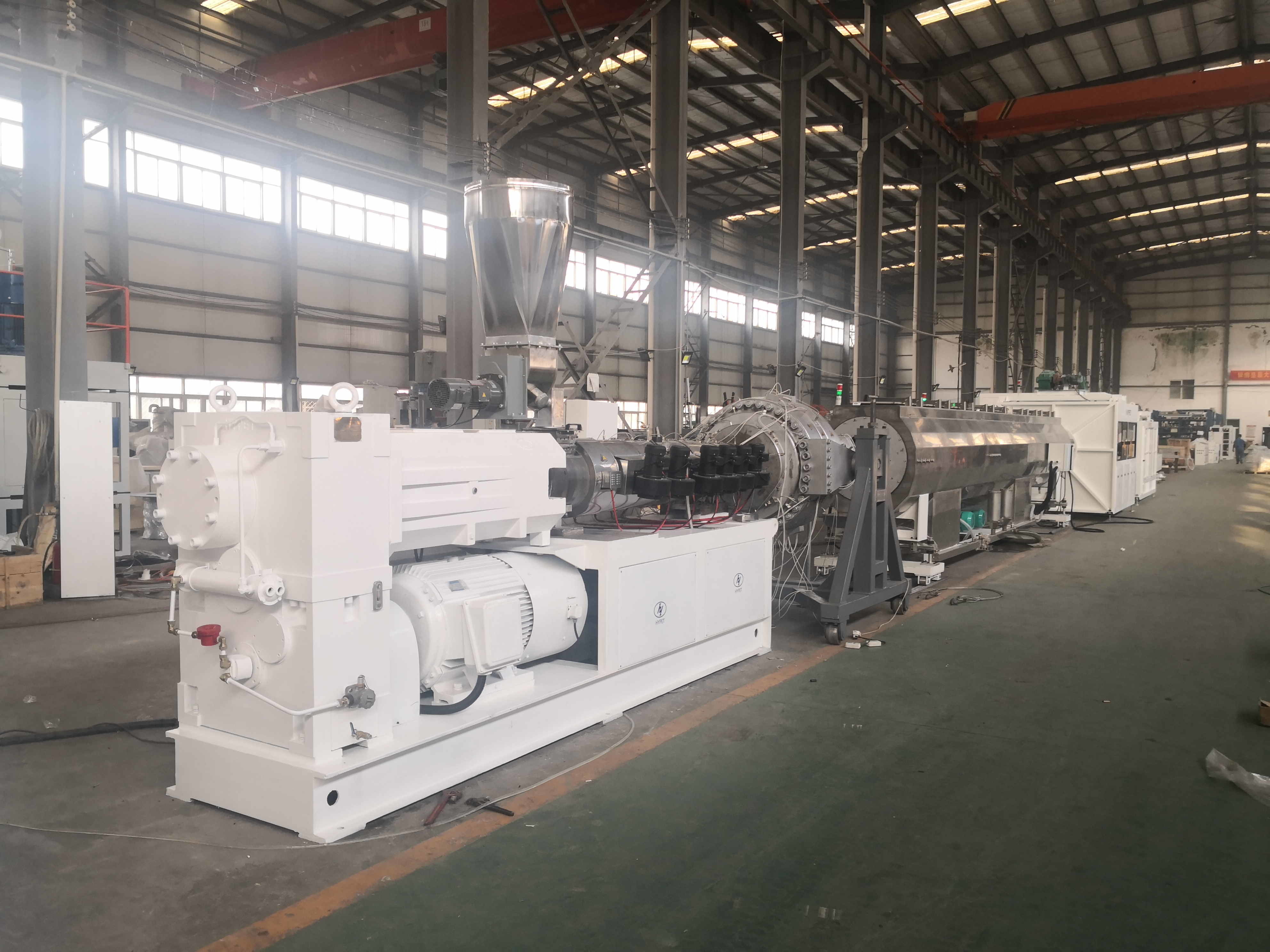

1	Extruder	Extruder model	HYPS-120/28 Paralllel twin screw
		Output	980-1050kg/h for pipe
		Center height	1150mm
		Dimension	5200 x 1600 x 2605mm
		Weight	7200kg
2	Screw	Diameter	Ø120 mm
		L/D	28:1 for pipe production.
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~45 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Barrel Structure	38CrMoAlA + special alloy
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)
4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display

5	Heater and cooling fans	Heating control area	7 zones
		Heating way	Cast aluminum/ ceramics
		Additional temp control	3 zones for additional
		Heating power	65 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.75 kW x4 sets+0.75kWx2 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	With famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	DELTA. heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	4 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	110 kW in Siemens brand
		AC inverter controller	DELTA inverter in heavy type

10	Electrical Control system	Electric elements independent control	The main control system will be controlled by each electric elements.
		Electric components brand	Branded in Siemens, Schneider RKC DELTA., FUJI, and small unimportant parts in China famous brand
		Temperature zone die head	18 zones
		Additional Temp zones	3 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life .

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
