High Output Longer Life Lower Consumption 32-110mm Double And Single Station PVC Pipe Making Machine Production Line

Ask Lasest Price
Brand Name :	Hypet
Model Number :	ZS65/132 32-110mm PVC pipe making machine production line
Certification :	ISO9001, CE
Price :	USD 62000/set
Payment Terms :	L/C, T/T
Supply Ability :	32-110mm PVC pipe making machine 100set per year
Delivery Time :	32-110mm PVC pipe making machine 65working days

Add to Cart

Product Details
Company Profile

High Output Longer Life Lower Consumption 32-110mm Double And Single Station PVC Pipe Making Machine Production Line

Production Line Brief introduction:

Items

specification

HYZS65/132 high efficient Conic Screw Extruder

1, New designed by our experience which output can be high level

2, Gear box is with high torque by strong gear and frame case with long life

3, heaters with heat protection which can make the energy saving

4, Barrel and screw are bimetal type for longer working life

High speed Die head

1, all parts are made by CNC machine tool to ensure the flowing equal well ,

2, with shining device,

3, high output speed can be 1-5m/min

3	Vacuum Tank	1, ALL are made by 304 Stainless steel material without painting. 2, water level and vacuum are controlled automatically 3, Install vacuum pressure relief muffler to realize that the sound of the
4	Haul off	1, 2 Claw type o ensure stable haul off force. 2, Driven by AC motor and inverter controlled by PLC system 3, Haul off Gear box are strong with harden gear surface.
5	Cutter	1, high speed Dustless cutter device, 2, with special motor action to ensure the pipe speed when cutting.
6	HYPET other special offerings	1, Offering On-Line Technical Service for free, Offering Technical Engineers service for big project or solving key technical items, 2, Offering matched good down stream equipment for plastic pipe profile, sheet /board pellets Etc.

HYZS65/132 conic twin screw extruder with 32-110mm PVC water pipe drainage sewage pipe production line :

SN	Parts name	Quantity /set
1	High efficient type Conic twin screw extruder HYZS65/132 in output of 430kg/h with 45kw main motor	1
2	Auto-loader for extruder in screw type	1
3	High speed high output type Die head with calibrators sizes in 32-50mm as above size list in thin wall thickness sizes	1
4	High speed high output type Die head with calibrators sizes in 63-110mm as above size list in middle wall thickness sizes	1
5	Vacuum tank in stainless steel without painting , 8000mm	1
6	Haul off unit 2 claw type AC motor controlled by ABB inverter	1
7	High speed dustless cutter	1
8	Auto stacker machine	1

Remarks:

1. Condition of the price and destination Ex-works Wuhan China

2. Payment method: 40% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C on time .

3. Delivery period: 70 days after received the deposit.

4. Validity period: 30 days after ensured

5. Warranty: one year for normal, barrel and screw and gear box is for 1.5 years

6. Training: both in china and in the customer shop are available.

7. If necessary, The supply can send the engineers to the buyer for commission under the condition.

Technical specification:

SN	Items	Description

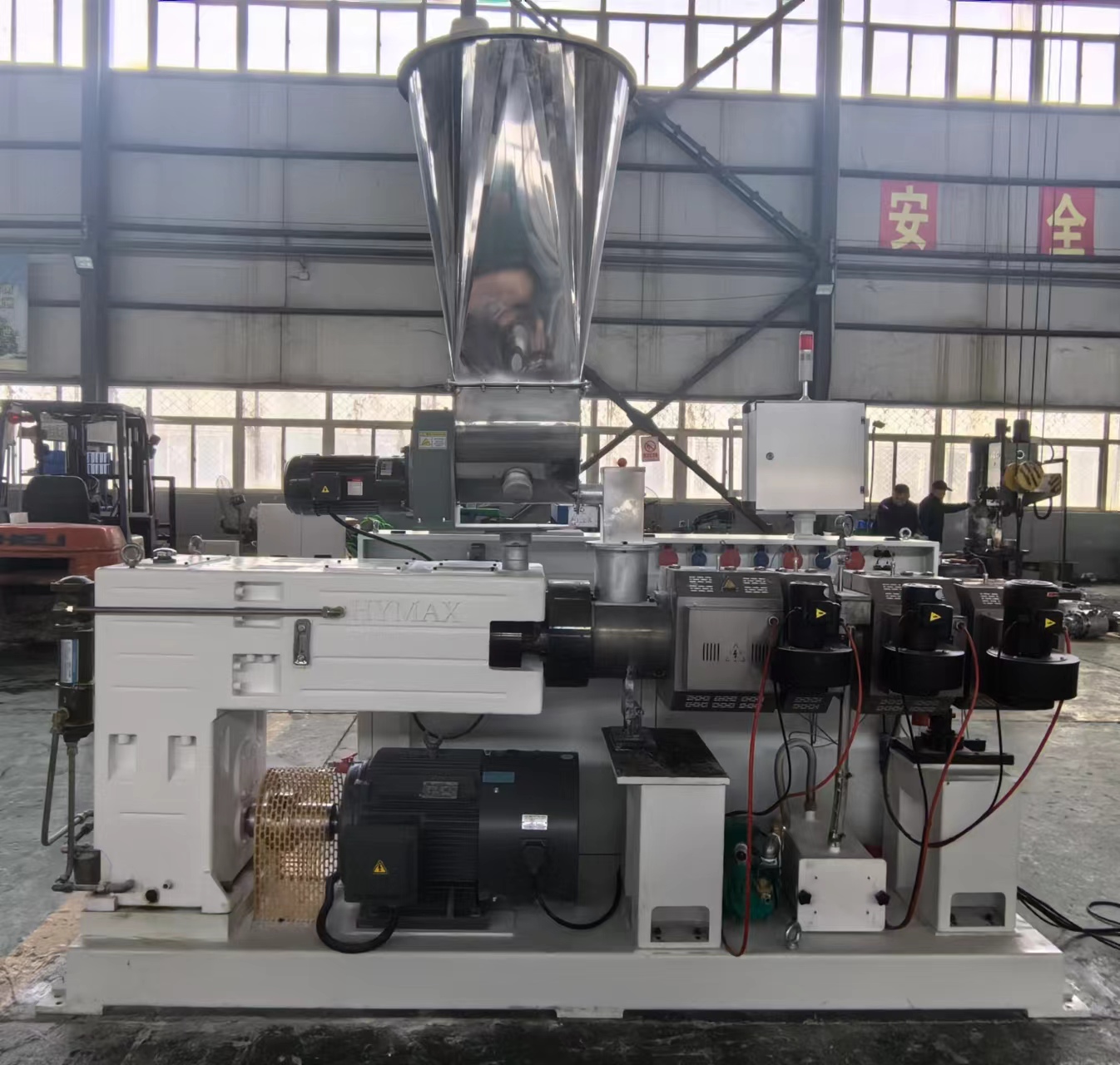

HYZS65/132 conic twin screw extruder
1	Extruder model	HYZS-65/132 conic twin screw
2	Output	420kg/h
3	Screw diameter	Ø65/132 mm
4	Screw material	38CrMoAlA + special alloy
5	Heat treatment	Nitrogen-filled (0.50~0.70mm depth)
6	Core of the screw	Auto control for temperature (Oil cooling will be for option )
7	Rotate speed	0~38 r/min
8	Barrel Structure	Bimetallic In two parts, front part will be with special alloy inserted.
9	Front part of the barrel	SKD11 with heat treatment
10	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
11	Heating control area	4 zones
12	Heating way	Cast aluminum/ ceramics
13	Heating power	22 kW
14	Cooling system	Low-noisy barrel cooling fan
15	Cooling power	0.3kW x 3 set
16	Temp & pressure Transducer	China famous brand with isolated cable.
17	Gear box brand	HYMAX gear box made by HYPET
18	Housing material	Ductile iron
19	Gear material	20CrMnTiA
20	Gear surface	Hardened and ground in high precision
21	Axis material	40Cr
22	Temperature of oil	Controlled by two system
23	Rubber sealer	Imported special rubber sealer used
24	Bearings	With famous and reliable brand.
25	Dosing feeder	Twin screw feeding type
26	Motor power	1.1kw
27	Speed range	1-50 RPM
28	Powder bridge	Anti powder bridge with high Caco3
29	Control	heavy loader type inverter
30	Vacuum degas motor power	2.2 kw
31	Vacuum degree	-0.04Mpa
32	Vacuum tank	Easy to be clean
33	Driving motor	AC Motor heavy type famous brand
34	Motor power	45kw
35	AC inverter controller	Famous Delta in heavy type
36	Electrical Control system	Siemens PLC+ HYPET AI auto control system
37	Electric components	Branded in Siemens, Schneider Omron, Delta /ABB, FUJI, and small unimportant parts in China famous brand
38	Extra temperature zone for die	8 zones
39	display screen size	14” big size monitor
40	Electric cabinet cable	Easy to be disassemble by joints

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
