PVC Powder Into Single Wall Corrugated Pipe Making Machine With HYZS51/110 Conic Twin Screw Extruder

Ask Lasest Price
Brand Name :	Hypet
Model Number :	HYZS51/110 PVC single wall corrugated pipe machine
Certification :	ISO9001,CE
Price :	USD 54500/set
Payment Terms :	L/C, T/T
Supply Ability :	PVC single wall corrugated pipe machine 100set per year
Delivery Time :	PVC single wall corrugated pipe machine 45working days

Add to Cart

Product Details
Company Profile

PVC Powder Into Single Wall Corrugated Pipe Making Machine With HYZS51/110 Conic Twin Screw Extruder

16-32mm PVC single wall corrugated pipe machine brief introduction:

Model	PVC Corrugated Hose Line
Raw Material	PVC powder
Pipe Dia mm	16/20/25/32mm and 40/50mm
Output kg/h	70-100
Main extruder	HYZS51/110-18.5kw conic twin scrw extruder
Dryer	No
die head	16-50mm With cores & Steel wire Channel
Forming machine	Pipe Dia: 10-58mm Speed 0-25m/min Motor 3kw with inverter Closed water-cooled channel Without forming mould
Forming moulds	16/20/25/32/40/50 mm double size or one szie in one mould
Coiler	double station
Overall Size mm	6300x1200x1900

Terms and Condition:

1. Payment condition: Ex-works Wuhan China

2. Payment method: 30% down payment by T/T and balance should be paid by T/T before Shipment

3. Delivery period: 60 days after received the down payment.

4. Warranty: one year

5. Test:The line will be tested before shipment, running for one hour

6. Validity period: 30 days after ensured

Specification of the Machine:

PVC Powder Into Single Wall Corrugated Pipe Making Machine With HYZS51/110 Conic Twin Screw Extruder

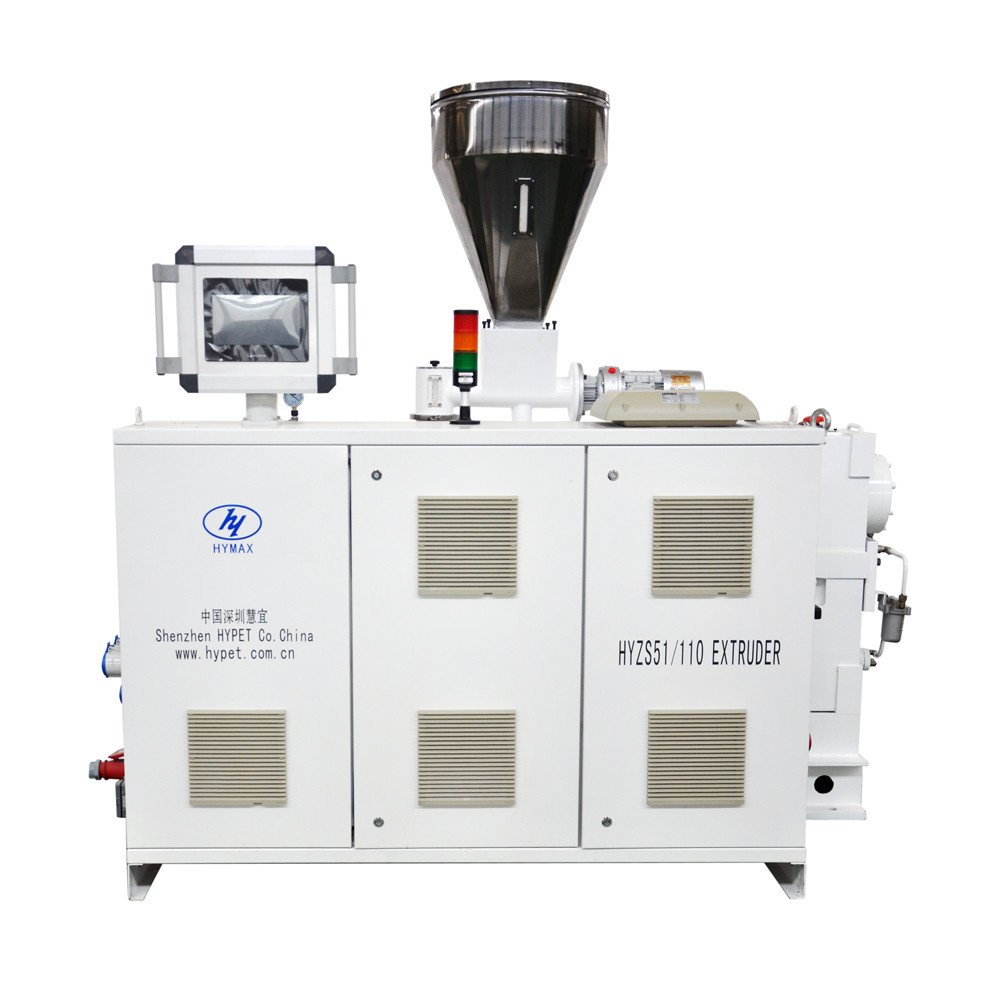

Extruder:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-51/110 conic twin screw
		Output	100-150kg/h
		Center height	1000mm
		Weight	2200kg
2	Screw	Diameter	ø51/110 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~38 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Material	38CrMoAlA with bi-metal type
		Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
		Heating control area	4 areas
		Heating way	Cast aluminum/ ceramics
		Heating power	20 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.25kW x 2 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
5	Twin screw Dosing feeder	Supplying material motor	1.1 kW
		Speed range	1-50 RPM
		Inverter	ABB
6	Vacuum degas with selector	Vacuum degree	-0.004Mpa
6	Vacuum degas with selector	Motor power	1.1 kW
7	Driving motor	AC motor power	22 kW
7	Driving motor	AC inverter controller	ABB

8	Electrical Control system	Detachable control panel	Digital display, adjusting knobs
		Extra temperature zone for die head	5 zones
		Components brand	Siemens, RKC, ABB, etc.
		PLC computer control system can be standard control system

Vacuum forming machine:

SN	Parts name	Specification	Description
1	Vacuum forming machine	Modular material	Cast iron
		Driving mode	Down driving
		Driving power	3 kW, ABB inverter
		Cooling method	Air curtain forced air cooling
		Cooling power	0.12kW x 5 sets
		Forming type	Vacuum
		Forming power	4 kW
		Moving method	Manuel adjustment
		Fore and rear moving distance	500mm

Pipe die head and mold:

SN	Parts name	Specification	Description
1	Pipe die head and mold	Size	According to sample or drawing
		Material	High quality mold steel
		Number of die head	1 set
		Number of mold	1 set 20/25mm
		Calibrating mold size	55mmx80mmx65.94mm
		Calibrating mold material	40Cr
		Total length of mold	65.94mm×60 pair=3956.4mm

Coiler

Parts name	Specification	Description	Features
Compressor	Driving mode	Motor driving	Automatically online compress, easy to operate, save time and labor.
	Motor power	0.37 kW
	Condition	According to customer’s sample
	Air source	>0.4 Mpa

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
