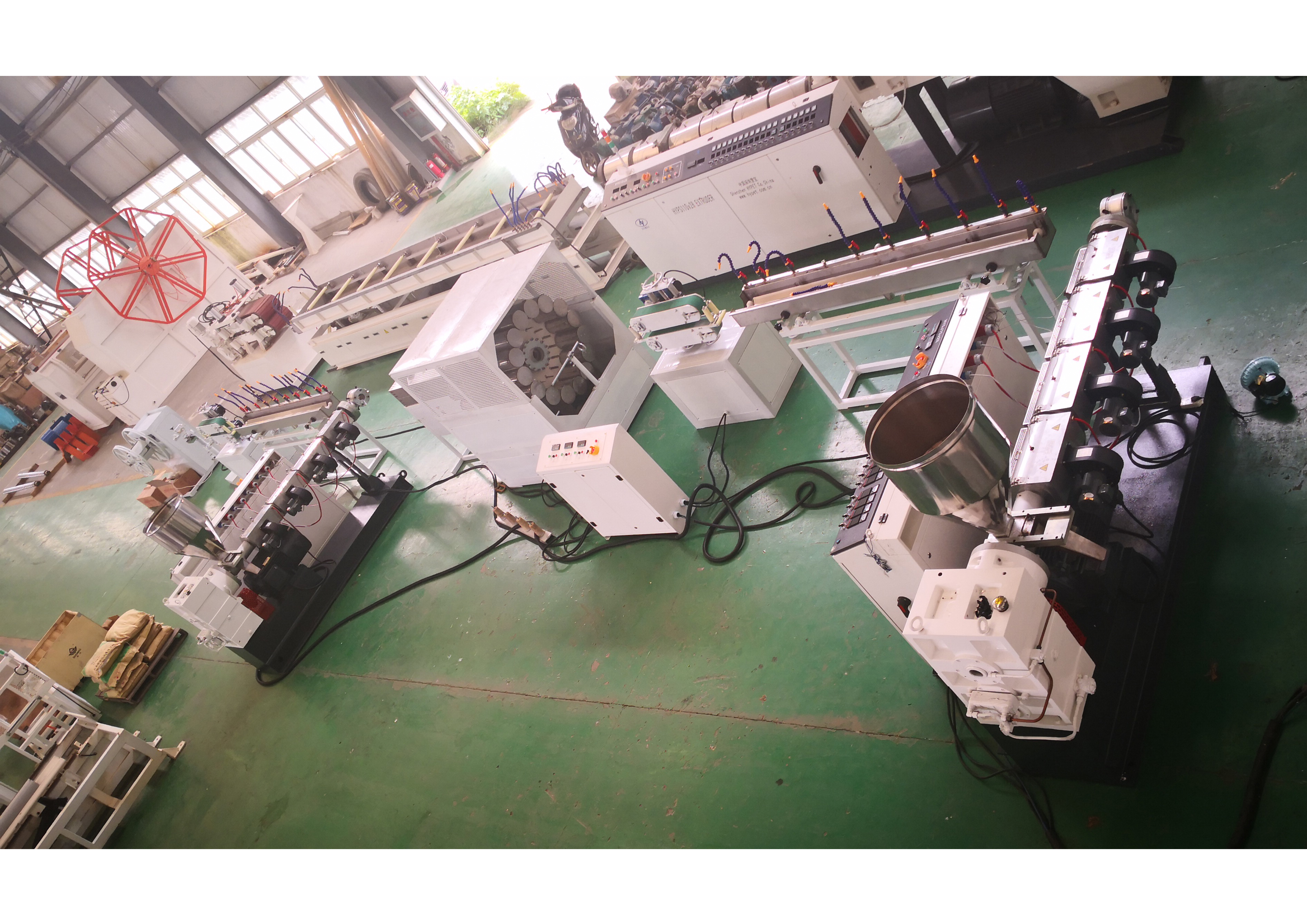

PVC fiber reinforced hose production line brief introduction:

Specification of the Machine:

SN	Parts name		Specification	Description
1	Extruder		Extruder model	HYSJ-75/28 single screw
			Output max	400 kg/h
			Center height	1,100mm
			Weight	3,300kg
2	Electrical Control system		Detachable control panel	Digital display, adjusting knobs
			Components brand	Siemens, RKC, ABB, etc.
			Note: PLC computer control system can be optional.
	Features	1. Cabinet is detachable, easy to install, maintain and transport; 2. With air conditioner; 3. Adopt the world famous brand electrical components, such as Siemens, ABB, RKC Schneider, and so on.
5	Gear box		Housing material	Ductile iron QT-500
			Gear material	20CrMnTi
			Gear surface	Hardened and ground in high precision
			Axis material	40Cr
6	Driving motor		AC motor power	22 kW
			AC inverter controller	Delta brand

7	Electrical Control system		PLC system	Whole Siemens PLC control system with HYPET soft ware.
			Control option:	RKC and traditional control can be offered
			Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
			Extra temperature zone for die head	10 zones
			Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

Afte -sales Service

Cooperative Brands:

Exhibition:

       Located in Shenzhen City which is the most lively and youngest top city in China, it's next to HongKong and Guangzhou City.

       Shenzhen HYPET founded in 2002, and it inherits from China national extrusion machinery entrerprise. Base on Germany and Italian technology, HYPET invented and manufacture unique gear box with own patent. For these reason to keep HYPET tech and machine quality priority in extrusion machine field.

      The first block type DIY plastic extruder solves the machine agents' many problem. They can easily get extruder parts from HYPET factory then assembles them in their own workshop via the installation video.

      The plastic extrusion line core part is the extruder. If the extruder is good, then the line 70% is good. So HYPET offer the service to match local downstream or old downstream service.

       Shenzhen HYPET machine is focus on top quality but best enconomic price. Our main plastic extrusion machine includes but not limited PVC / HDPE / PPR pipes extrusion production line, PVC and WPC all type of profiles (PVC window, ceiling, wallpanel, decking, gutter, duct...) production line, PVC plastic marble sheet line, SPC floor production line, WPC door plant, PVC foam board line, Nonweave melt blown fabric line.....

       HYPET also offer the special PVC processing aid to decrease your final product cost and increase the product quaity & better shining surface.

      We have a full technical team can help you design, manufacture, assemble, inspect and test the plastic machine meet your request.
