Easy Operation16-32mm PE PVC Single Wall Corrugated Pipe Machine With Single Screw Extruder SJ65/28

Ask Lasest Price
Brand Name :	Hypet
Model Number :	HYSJ65/28 PE PVC single wall corrugated pipe machine
Certification :	ISO9001,CE
Price :	USD 38700/set
Payment Terms :	L/C, T/T
Supply Ability :	PE PVC single wall corrugated pipe machine 100set per year
Delivery Time :	PE PVC single wall corrugated pipe machine 45working days

Add to Cart

Product Details
Company Profile

Easy Operation16-32mm PE PVC Single Wall Corrugated Pipe Machine With Single Screw Extruder SJ65/28

16-32mm PE PVC single wall corrugated pipe machine brief introduction:

Model	PE/PVC Corrugated Hose Line
Raw Material	PE pellets / PVC pellets
Pipe Dia mm	16/20/25/32mm and 40/50mm
Output kg/h	60-80
Main extruder	HYSJ65/28-22kw + extra one screw
Dryer	HD100
die head	16-50 With cores & Steel wire Channel
Forming machine	Pipe Dia: 10-58mm Speed 0-25m/min Motor 3kw with inverter Closed water-cooled channel Without forming mould
Forming moulds	16/20/25/32/40/50 mm double size or one size in one mould
Coiler	double station
Overall Size mm	5800x1200x1900

Terms and Condition:

1. Payment condition: Ex-works Wuhan China

2. Payment method: 30% down payment by T/T and balance should be paid by T/T before Shipment

3. Delivery period: 60 days after received the down payment.

4. Warranty: one year

5. Test:The line will be tested before shipment, running for one hour

6. Validity period: 30 days after ensured

Specification of the Machine:

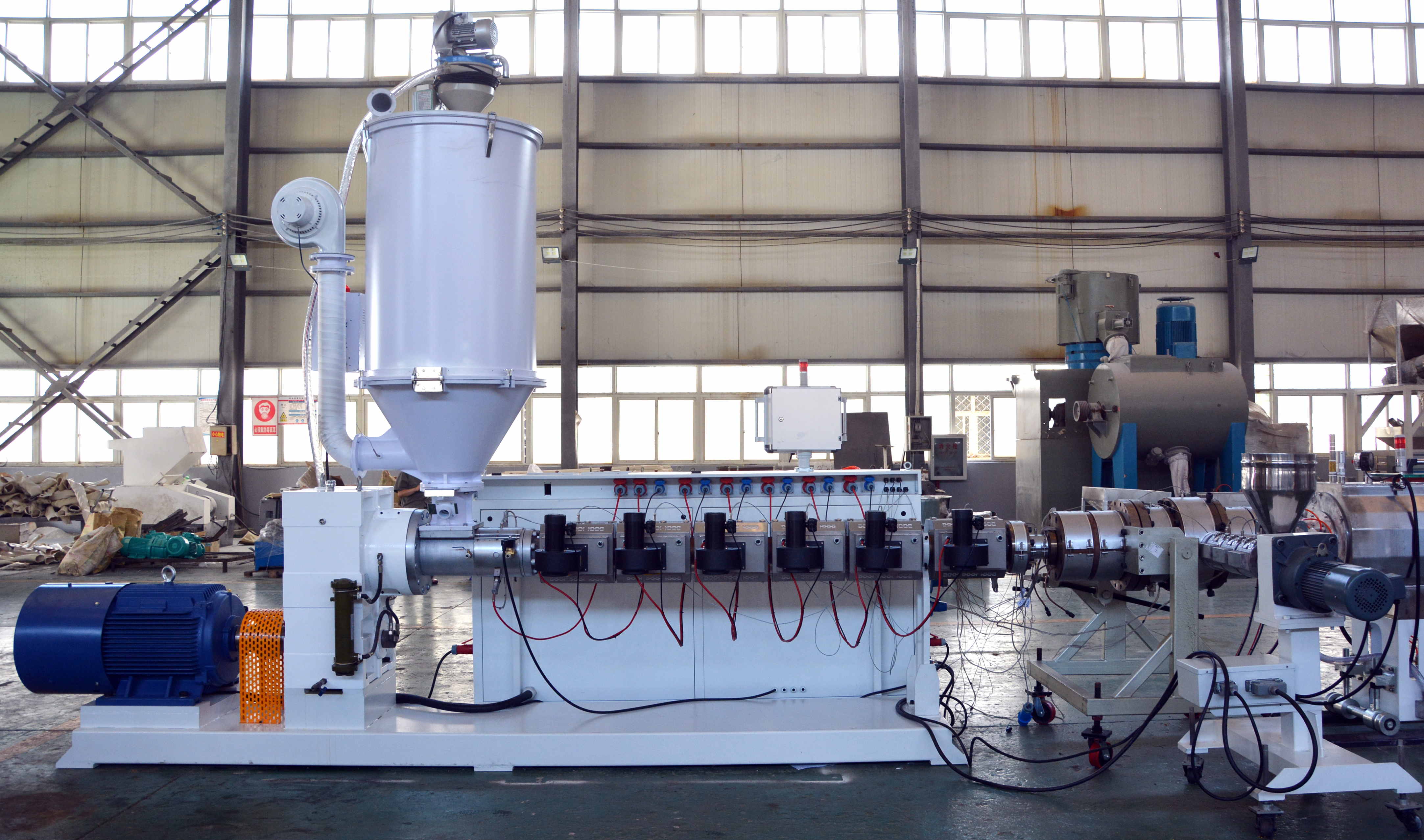

1.Extruder:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYSJ-65/28 single screw
2	Screw	Diameter	Ø65 mm
		Screw ID ratio	28:1
		Material	38CrMoAlA
		Surface treatment	Polish
3	Barrel	Material	38CrMoAlA
		Inside finish	Nitrogen-filled
		Heating control area	5 areas
		Heating way	Ceramic heater
		Heating power	20 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.08kW x 5 sets
4	Gear box	Housing material	HT200
		Gear material	20CrMnTi
		Gear type	Helical gear
		Gear surface treatment	Quenching
		Cooling type	Inside water cooling
5	Driving motor	AC motor power	30 kW
		AC inverter controller	ABB
6	Components	Low voltage components	Siemens
		Temperature control	Omron

2. Vacuum dryer hopper loader

SN	Parts name	Specification	Description
1	Loader	Material	Stainless steel
		Method	Vacuum absorb
		Dryer loader	Hot wind dryer
2	Loader support	Method	Water cooling
2	Loader support	Material	Q235-A

3. Vacuum forming machine:

SN	Parts name	Specification	Description
1	Vacuum forming machine	Modular material	Cast iron
		Driving mode	Down driving
		Driving power	3 kW, ABB inverter
		Cooling method	Air curtain forced air cooling
		Cooling power	0.12kW x 5 sets
		Forming type	Vacuum
		Forming power	4 kW
		Moving method	Manuel adjustment
		Fore and rear moving distance	500mm

4. Pipe die head and mold:

SN	Parts name	Specification	Description
1	Pipe die head and mold	Size	According to sample or drawing
		Material	High quality mold steel
		Number of die head	1 set
		Number of mold	1 set 20/25mm
		Calibrating mold size	55mmx80mmx65.94mm
		Calibrating mold material	40Cr
		Total length of mold	65.94mm×60 pair=3956.4mm

5. Coiler

Parts name	Specification	Description	Features
Compressor	Driving mode	Motor driving	Automatically online compress, easy to operate, save time and labor.
	Motor power	0.37 kW
	Condition	According to customer’s sample
	Air source	>0.4 Mpa

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
